Запчасти Case IH 2588 (74.101.06) - TAILINGS - ELEVATOR DRIVE (74) - CLEANING

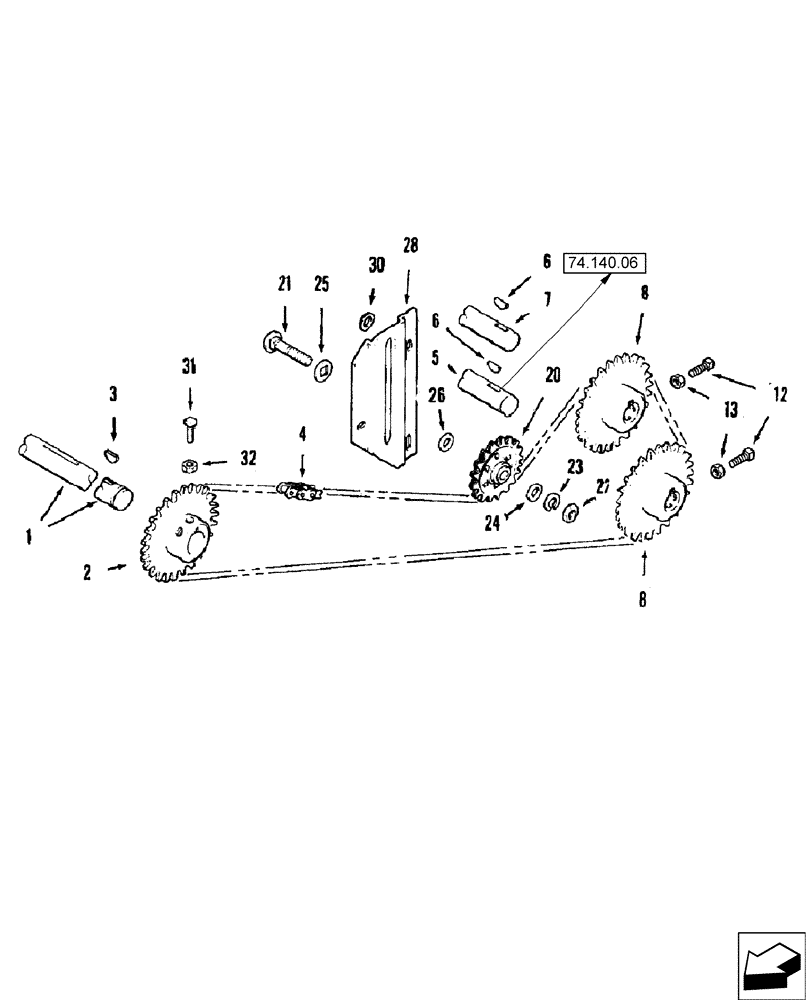

Схема запчастей Case IH 2588 - (74.101.06) - TAILINGS - ELEVATOR DRIVE (74) - CLEANING
6
21
12
74.140.06
28
8
26
23
3
24
7
20
30
1
5
8
2
22
31
4
6
25
13
32

Артикул

Название

Примечание

Количество

1

1319247C1

SHAFT

1шт.

2

296022A1

SPROCKET

27 T, Drive

1шт.

3

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

4

1302671C92

CHAIN,#50, 156 Links x 15.88mm = 2476.5mm

Order 1791D (155), 241-1315 (1), Tailings Drive, Serial Range: -Y9G001953

1шт.

4

84164207

CHAIN (AG),60H, 134 Links x 19.05mm = 2552.7mm

, Start Serial: Y9G001953

1шт.

5

192563C1

AUGER

Delivery

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

1шт.

8

1345472C1

SPROCKET

27 T

2шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

20

103244

SPROCKET

17 T

1шт.

21

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

4шт.

25

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

2шт.

26

495-81182

WASHER,21/32" x 1 1/4" x .060"

2шт.

28

1302069C2

SUPPORT

1шт.

30

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

2шт.

32

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

Выбрано товаров: 22
