(66.330.16[04]) - KIT ANTI-WIND EXT WITH BEARING HOUSING

Запчасти Case IH 2588 (66.330.16[04]) - KIT ANTI-WIND EXT WITH BEARING HOUSING (66) - THRESHING

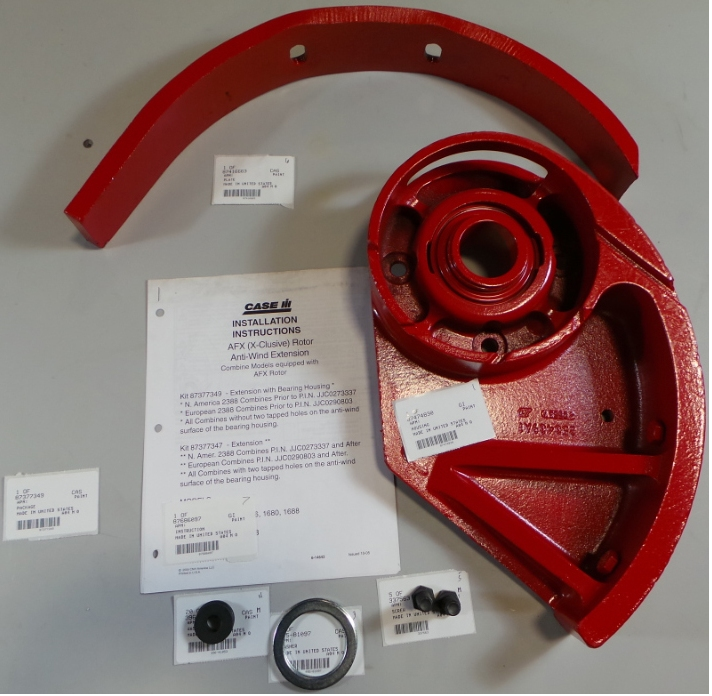

Схема запчастей Case IH 2588 - (66.330.16[04]) - KIT ANTI-WIND EXT WITH BEARING HOUSING (66) - THRESHING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87377349

PACKAGE

Incl 2 - 7

1шт.

2

87686097

INSTRUCTION

1шт.

3

87416663

PLATE

1шт.

4

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

5

87393626

WASHER,0.53" ID x 1.25" OD x 0.19" Thk

2шт.

6

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

2шт.

7

87474830

HOUSING

1шт.

Выбрано товаров: 7
