Запчасти Case IH 2588 (66.330.16[02]) - ROTOR INSTALLATION PARTS - ASN HAJ303001 (66) - THRESHING

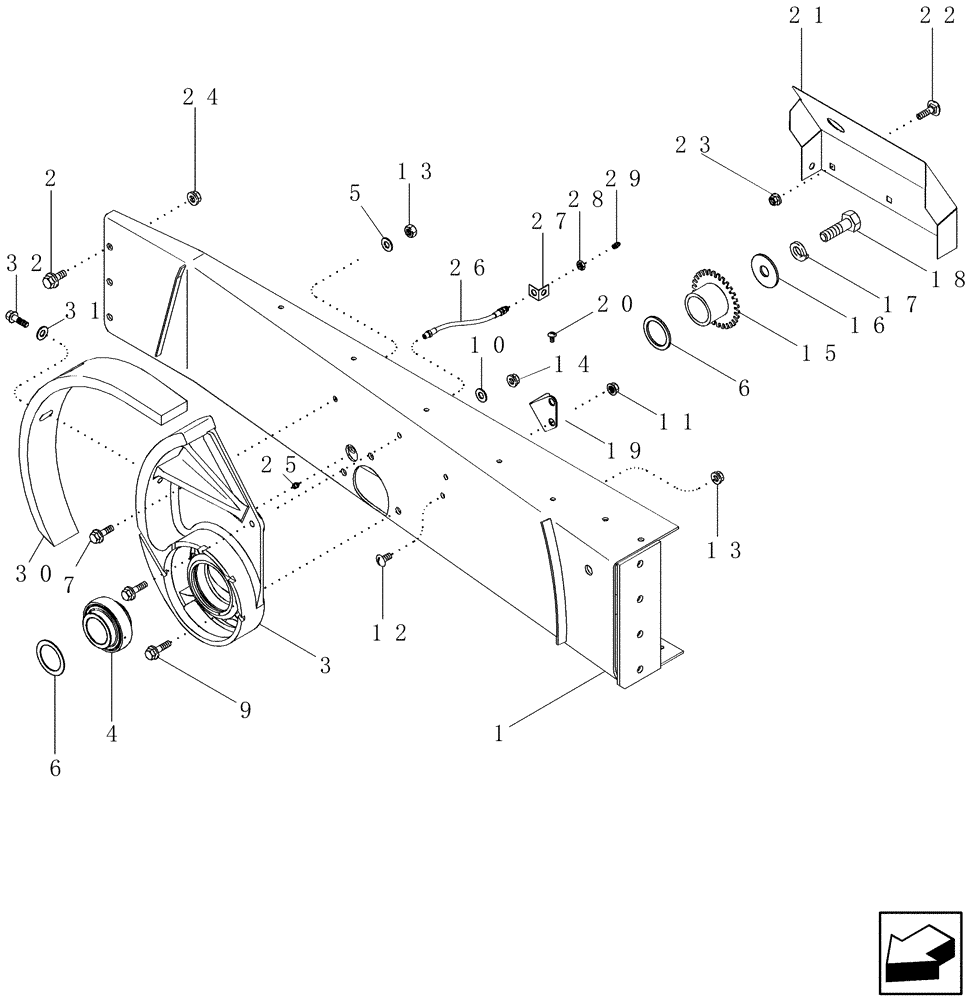

Схема запчастей Case IH 2588 - (66.330.16[02]) - ROTOR INSTALLATION PARTS - ASN HAJ303001 (66) - THRESHING
24
26
17
22
1
13
7
30
19
20
4
23
18
12
32
3
9
28
13
16
31
6
27
6
15
10
21
25
5
2
29
11
14

Артикул

Название

Примечание

Количество

1

87613390

SUPPORT ASSY.

Front Bearing, Extended Wear

1шт.

2

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

3

87680175

BEARING ASSY

With Front Bearing, Incl Ref 4

1шт.

4

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

Rotor Front

1шт.

5

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

6

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

1шт.

5 Maximum Shared Between Both Locations

1шт.

7

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

9

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

10

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

3шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

13

43436

FLANGE NUT,M12

2шт.

14

86512498

FLANGE NUT,M16 x 2, Cl 10

3шт.

15

1979965C1

ROTOR

Magnetic Speed Pickup

1шт.

16

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

Rotor, Front Shaft

1шт.

17

492-11075

LOCK WASHER,3/4"

1шт.

18

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

1шт.

19

87681790

BRACKET, SUPPORTING

Rotor Speed Sensor

1шт.

20

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

2шт.

21

87681895

BRACKET, SUPPORTING

RPM Sensor

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

23

131-872

SPRING NUT,Ret, 3/8"-16

3шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1/2"

8шт.

25

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

Hose

1шт.

26

937781R92

HOSE,3.02mm ID x 686mm L

1шт.

27

419744A1

BRACKET

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8"

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

30

87416663

PLATE

Anti-Wind Extension

1шт.

31

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

2шт.

32

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

Выбрано товаров: 32
