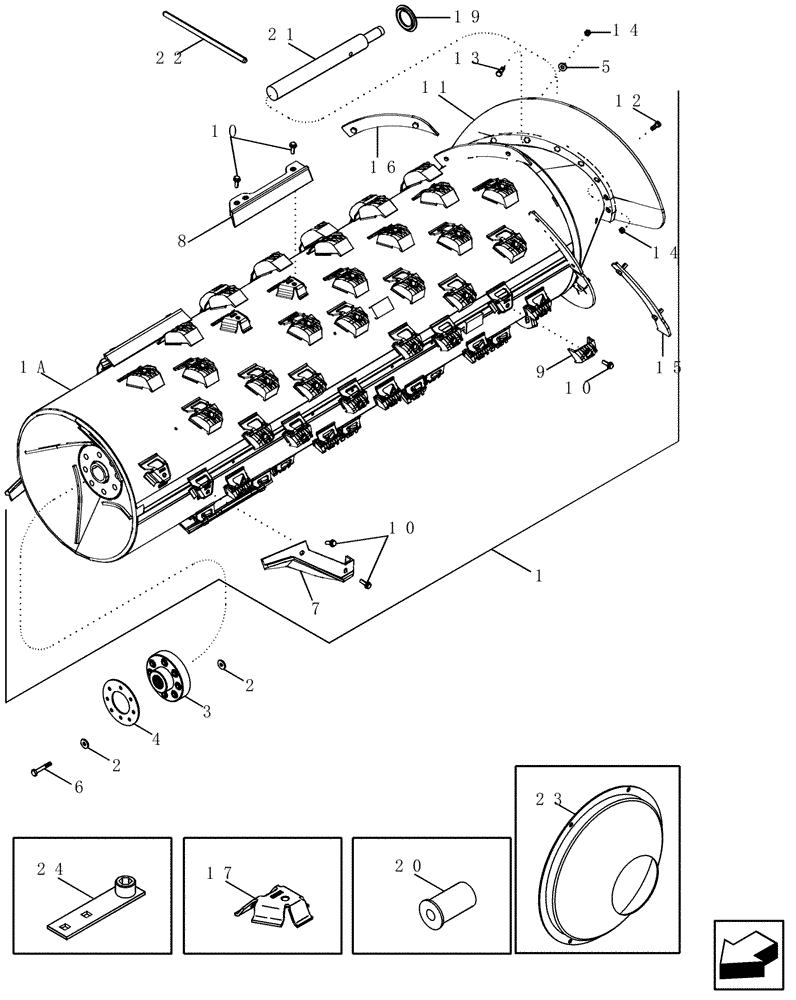

Запчасти Case IH 2588 (66.330.15[02]) - ROTOR ASSY - SPECIALTY AFX - ASN HAJ303001 (66) - THRESHING

1

87636594

ROTOR ASSY.

AFX Speciality Corn, Standard Wear, Incl Refs 1A, 5, 7 -14

1шт.

1

87636590

ROTOR ASSY.

AFX Speciality Grain, Standard Wear, Incl Refs 1A, 5, 7 - 14

1шт.

1

87636598

ROTOR ASSY.

AFX Speciality Rice, Extended Wear, Incl Refs 1A, 5, 7 -14

1шт.

1

87636602

ROTOR ASSY.

AFX Speciality, Extended Wear, Incl Refs 1A, 5, 7 - 14

1шт.

1a

NSS

NOT SOLD SEPARAT

ROTOR ASSY, With Supports and Nuts

1шт.

2

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

16шт.

3

87619364

COUPLING

Rotor Drive, (8 Bolt)

1шт.

4

87393350

PLATE

Rotor Load Ring

1шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

20шт.

6

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

8шт.

7

1327676C1

BAR

Helical Kicker, Standard Wear

2шт.

7

86992048

BAR

Helical Kicker, Rice, Extended Wear

2шт.

8

1318976C2

BAR,Straight Seperator

Straight Separator, Grain, Standard Wear

4шт.

8

1318976C2

BAR,Straight Seperator

Straight Separator, Corn, Standard Wear

8шт.

9

1309336C2

RASP BAR

W/Out Rear Spike, Grain, Standard Wear

66шт.

9

1309336C2

RASP BAR

W/Out Rear Spike, Corn, Standard Wear

58шт.

9

278821A2

RASP BAR

W/Out Spike, Extended Wear

66шт.

9

278820A4

RASP BAR

W/Spike, Extended Wear, Rice

74шт.

10

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

78шт.

434525A3

KIT

AFX Rotor Inlet Flight with Extensions, (Standard Wear), Incl Refs 11 (2), 12 (16), 13 (12), 14 (16) - 16, 5 (12), 15 (12)

1шт.

87519251

PACKAGE, REPAIR

AFX Rotor Inlet Flight with Extensions, (Extended Wear), Incl Refs 11 (2), 12 (16), 13 (12), 14 (16), 5 (12), 15 (12), 25 (1), 26 (1)

1шт.

11

NSS

NOT SOLD SEPARAT

FLIGHT, Inlet

2шт.

12

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

16шт.

13

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

14

199528A1

NUT

24шт.

15

87386465

STEEL FLIGHT

Inlet Extension

2шт.

16

87386468

STEEL FLIGHT

Intermediate

2шт.

17

87281664

SUPPORT

Rasp Bar W/Metric Nut, Accepts M12 Bolt

1шт.

87357079

KIT

AFX Rotor Front Shaft Stabilizer Ring, Incl Refs 19, 20

1шт.

19

87427000

RING

1шт.

20

87361878

STABILIZER

Tool

1шт.

21

191545C2

SHAFT

Front

1шт.

22

412366A1

PIN,19.05mm OD x 439.8mm L

Rotor Shaft

1шт.

23

87619897

COVER

Rotor Gear Case, Used On Older Combines With New Rotor

1шт.

24

87417745

SPECIAL WRENCH

Rasp Bar

1шт.

87710694

PACKAGE,SERVICE

Rotor Inlet and Intermediate Flight Extension, Incl Refs 4 (Qty 8), 13 (Qty 8), 15, 16

1шт.

25

86989978

ROD

Rotor Inlet Flight Guide (Not Shown)

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

Not Shown

1шт.
