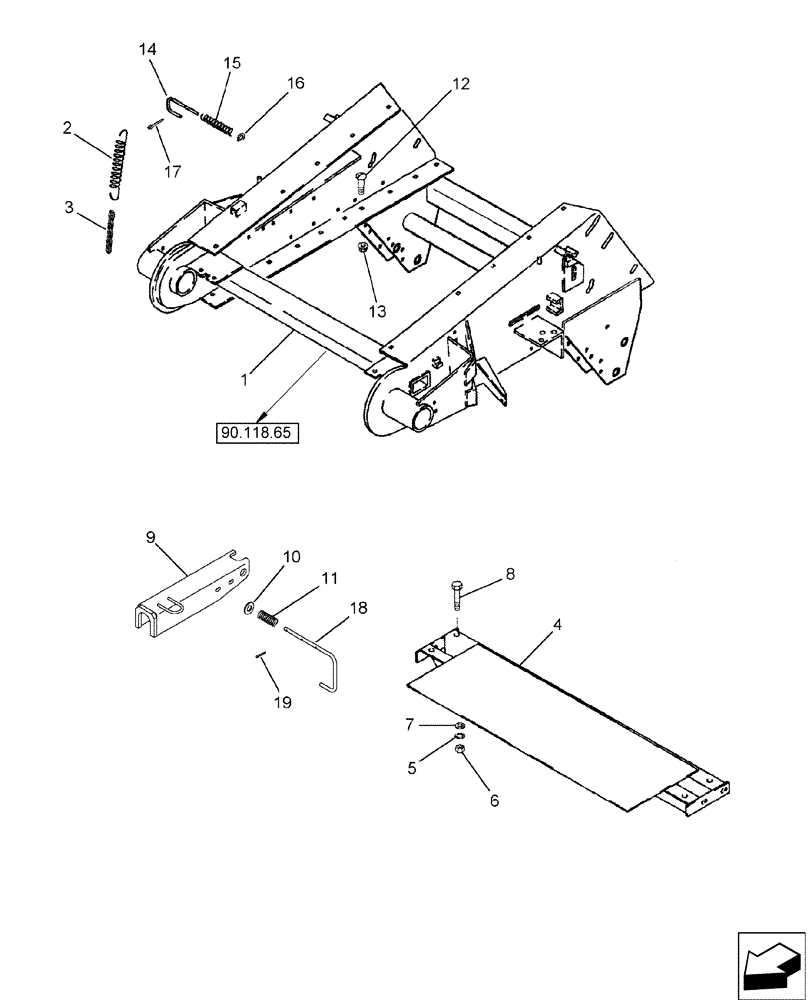

Запчасти Case IH 2588 (60.110.17) - FEEDER - SUPPORTS AND LIFT BRACKET (60) - PRODUCT FEEDING

1

NSS

NOT SOLD SEPARAT

FEEDER HOUSING

1шт.

2

635503R1

SPRING,148.8mm Free Length

2шт.

3

167570C1

CHAIN,203.2mm L

2шт.

4

252123A2

REINFORCEMENT

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

4шт.

7

195-81030

WASHER

17/32 x 1-1/2 x 3/16

4шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

87303061

STAND

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

11

192216A1

SPRING

1шт.

12

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

8шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

14

243058A3

PIN,9.53mm OD

1шт.

15

M296

SPRING

1шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.

18

243058A3

PIN,9.53mm OD

1шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.
