Запчасти Case IH 2588 (55.404.26) - HARNESS - GRAIN TANK AND UNLOADER LAMP (55) - ELECTRICAL SYSTEMS

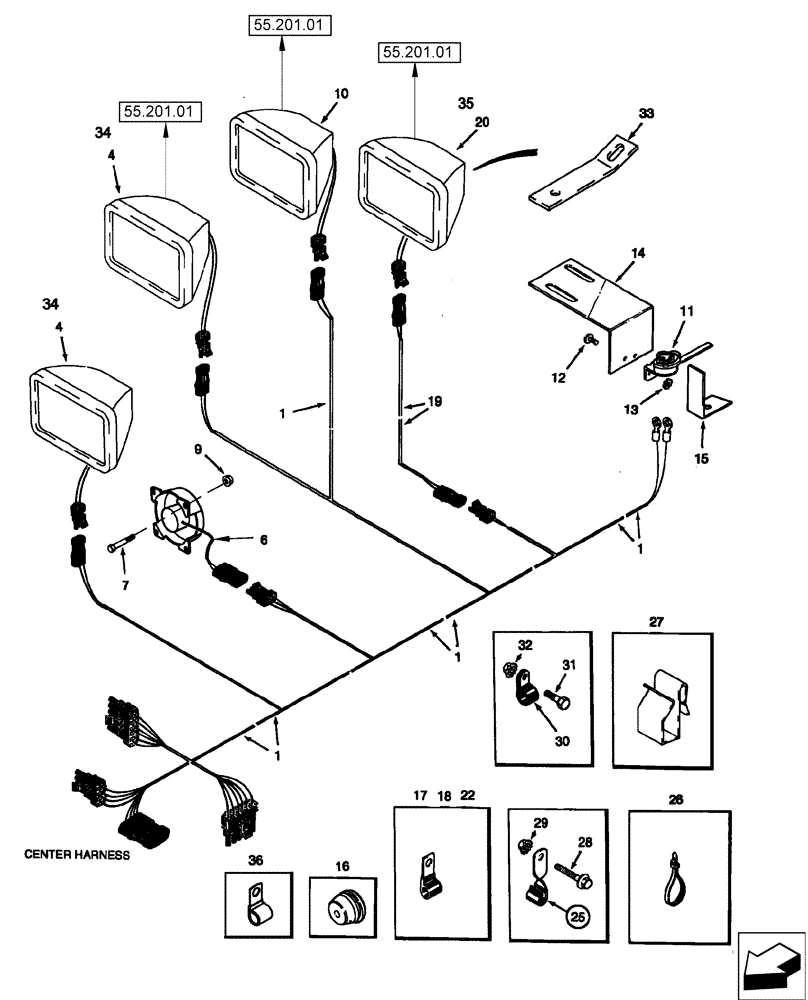

Схема запчастей Case IH 2588 - (55.404.26) - HARNESS - GRAIN TANK AND UNLOADER LAMP (55) - ELECTRICAL SYSTEMS
11
25
36
9
4
14
1
34
1
30
34
13
1
26
17
35
4
12
6
19
33
1
20
7
28
31
55.201.01
55.201.01
55.201.01
22
27
15
16
29
18
10
32

Артикул

Название

Примечание

Количество

1

87395012

WIRE HARNESS

Grain Tank, Incl Refs 2, 3

1шт.

2

187308A1

CAP

Not Shown

2шт.

3

187309A1

BAR

Splice (Not Shown)

2шт.

4

185118A1

HEADLIGHT,12V, 37.5W

Flood, LH and RH, Incl Ref 5

2шт.

5

139119A1

BULB,#886, 12V, 50W

Not Shown

1шт.

6

87346939

SENSOR

Grain Tank Level, Serial Range: -HAJ300402

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

6

87701176

SENSOR

Grain Tank Level, Start Serial: HAJ300402

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

10

185119A1

HEADLIGHT,12V, 37.5W

Grain Tank

1шт.

11

537641R2

SWITCH ASSY

Unloader Out

1шт.

12

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

13

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.

14

1338003C1

BRACKET

1шт.

15

1338004C2

BRACKET

1шт.

16

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4" ID

1шт.

16

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8" ID

2шт.

17

362126R1

CLIP

3шт.

18

370383R1

CLIP

3/4" ID

6шт.

19

87543849

WIRE HARNESS

Unloader Lamp

1шт.

20

185116A1

HEADLIGHT,12V, 37.5W

Unloader, Incl Ref 21

1шт.

21

323094A1

BULB

Type C-6, No. 894 (Not Shown)

1шт.

22

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

24

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

25

363660R1

CLIP

1шт.

26

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

7шт.

27

197991A1

CLIP,ELECTRICAL

Grain Tank Switch

2шт.

28

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

1шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

30

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

5шт.

31

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

33

300433A1

SUPPORT

Unloader Lamp

1шт.

34

430504A1

LAMP,Halogen, 12V, 55W, Clear

55W, Aftercut

2шт.

35

185116A1

HEADLIGHT,12V, 37.5W

37.5W

1шт.

36

370383R1

CLIP

6шт.

Выбрано товаров: 37
