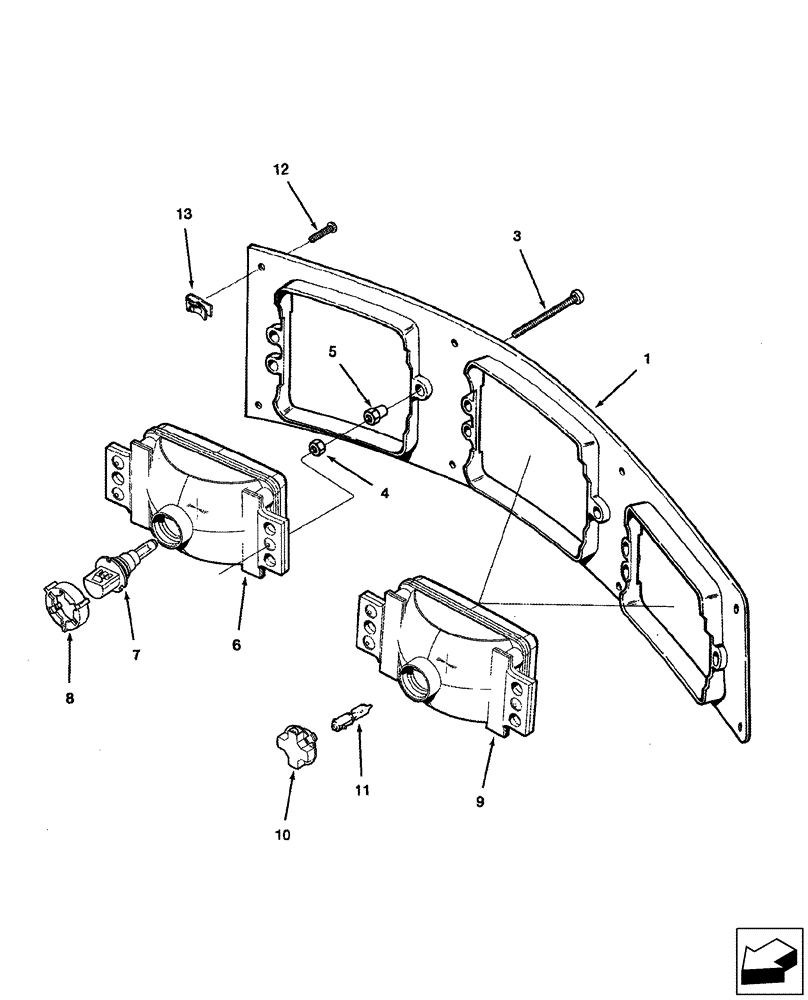

Запчасти Case IH 2588 (55.404.02) - LAMP ASSY - DRIVE AND FLOOD (55) - ELECTRICAL SYSTEMS

1

137821A1

BEZEL

Lamps, RH

1шт.

2

137819A1

BEZEL

Lamps, LH (Not Shown)

1шт.

3

137829A1

SCREW,Hex Rec Hd, #10 - 24 x 76.20mm

Number 10 x 3

18шт.

4

86632551

NUT,#10-24, GB

18шт.

5

137831A1

RETAINER

18шт.

6

138224A1

WORK LAMP

Drive, RH

1шт.

6a

183161A1

WORK LAMP

Drive, LH (Not Shown)

1шт.

7

137823A1

BULB,#9004, 65W/50W

2шт.

8

137825A1

RETAINER COLLAR

2шт.

9

138225A1

WORK LAMP

Flood, RH

2шт.

9a

183162A1

WORK LAMP

Flood, LH (Not Shown)

2шт.

10

137827A1

LAMP SOCKET

4шт.

11

137828A1

BULB

65W

4шт.

12

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

16шт.

13

131-648

SPRING NUT,Tinn, U, #10-24

16шт.
