(55.100.48) - COMBINE HEADER ADAPTER, ELECTRICAL

Запчасти Case IH 2588 (55.100.48) - COMBINE HEADER ADAPTER, ELECTRICAL (55) - ELECTRICAL SYSTEMS

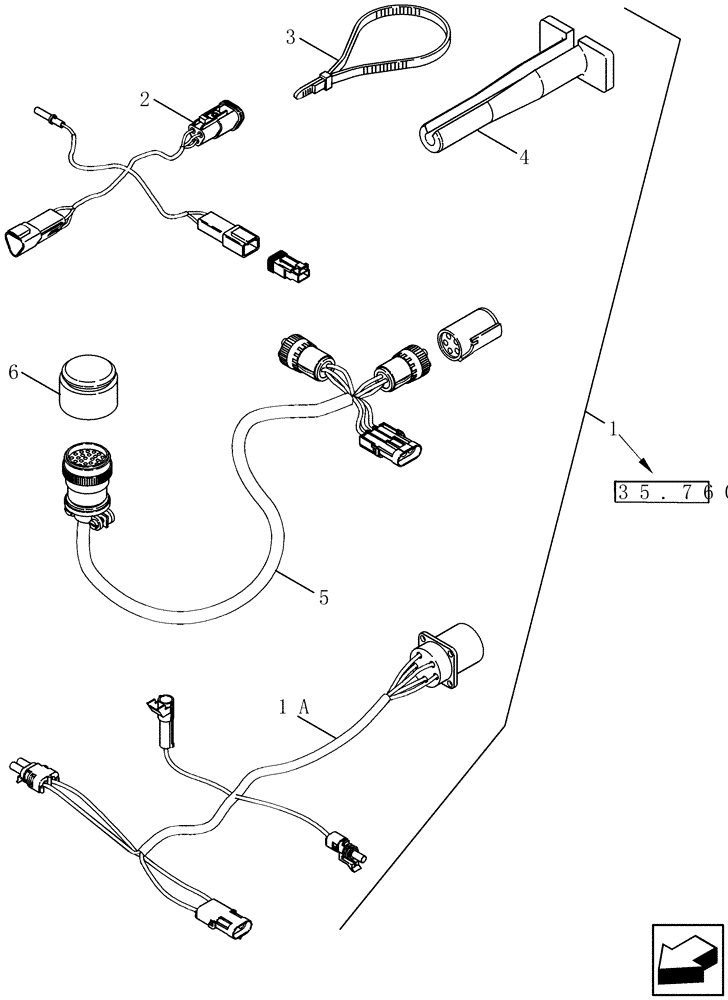

Схема запчастей Case IH 2588 - (55.100.48) - COMBINE HEADER ADAPTER, ELECTRICAL (55) - ELECTRICAL SYSTEMS
3
1
2
6
35.760.04
4
1a
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87340862

DIA KIT, HARVESTER

Hydraulic and Electrical Interface, Incl Refs 1 - 5

1шт.

1a

87447945

WIRE HARNESS

Power & Ground

1шт.

2

87455341

WIRE HARNESS

Lateral Tilt Adapter

1шт.

3

86566989

CABLE TIE,208mm L

CABLE STRAP Nylon, 8", Black

4шт.

4

87050118

TOOL

Deutsch Extractor, Size 16, Blue

1шт.

5

87447944

WIRE HARNESS

Header Interface

1шт.

6

87105683

CAP

Interface Harness

1шт.
