Запчасти Case IH 2588 (55.100.47) - HARNESS - FIELD TRACKER (55) - ELECTRICAL SYSTEMS

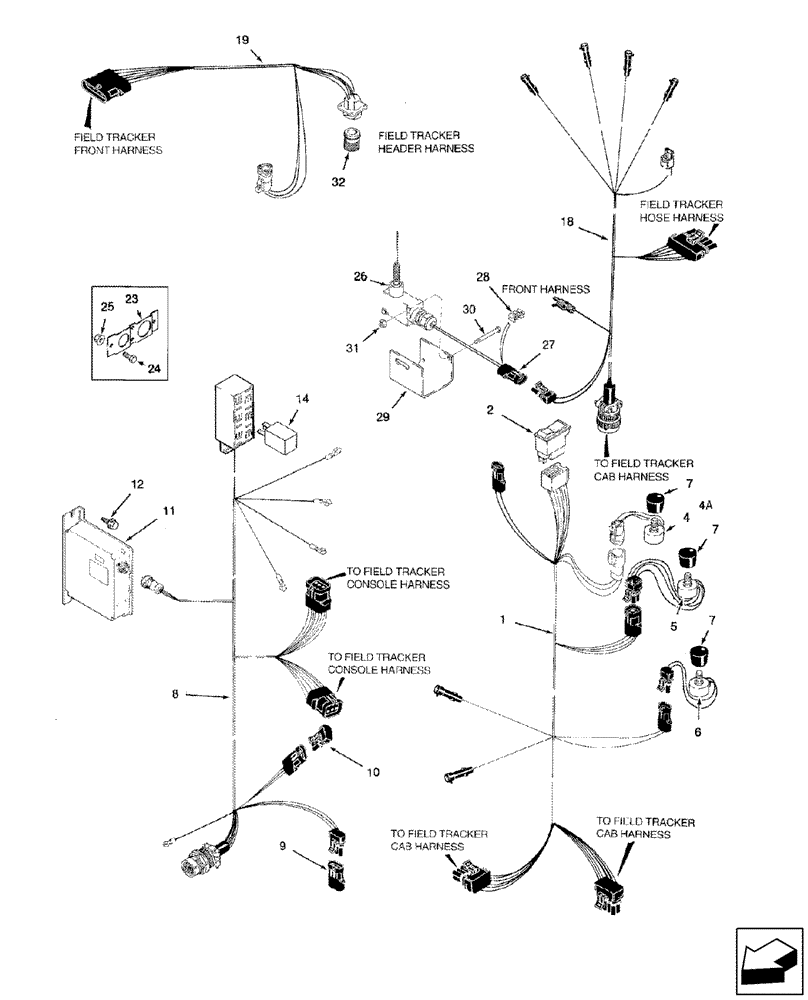

Схема запчастей Case IH 2588 - (55.100.47) - HARNESS - FIELD TRACKER (55) - ELECTRICAL SYSTEMS
10
32
4a
23
24
11
31
29
5
18
4
12
26
30
27
28
8
2
6
7
7
14
7
25
19
9
1

Артикул

Название

Примечание

Количество

1

125838A2

WIRE HARNESS

Console, Field Tracker

1шт.

2

109814A1

SWITCH

Auto/Manual, Incl P/N 109915A1, P/N 109826A1, P/N 3141107R1, P/N 134608A1

1шт.

109915A1

SYMBOLS

SYMBOL Lens

1шт.

109826A1

SWITCH

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

134608A1

LAMP SOCKET

Socket, Lamp

1шт.

4

114551A1

POTENTIOMETER,2500 Ohm, 500V

HVAC Controls

1шт.

4a

345346A1

POTENTIOMETER,1000 Ohm, 500V

Balance Field Tracker

1шт.

5

114553A1

POTENTIOMETER,10,000 Ohm

Sensitivity

1шт.

6

133498A2

POTENTIOMETER,50,000 Ohm

Response

1шт.

7

118780A1

KNOB

3шт.

8

276484A1

WIRE HARNESS

Cab, Field Tracker, Incl Refs 9, 10

1шт.

9

126011A1

DIODE

1шт.

10

A187874

MODULE

1шт.

11

100275A2

ECU

Replaces P/N 100275A1

1шт.

11

100275A2R

REMAN ELECT CONTROL

2588 CASE IH AXIAL-FLOW COMBINE (NA) ASN HAJ300001 (10/06-)

1шт.

11

100275A2C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

13

495-31022

WASHER,#10

Not Shown

2шт.

14

87414866

RELAY,12V, 20A

20 amp, Continuous Duty

5шт.

18

276479A2

WIRE HARNESS

Front, Field Tracker

1шт.

19

141729A1

WIRE HARNESS

Hose, Field Tracker

1шт.

23

1988724C1

SUPPORT

Monitor

1шт.

24

87302571

HEX SOC SCREW,Hex Washer Hd, #10 - 24 x 1"

3шт.

25

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

298817A1

SWITCH

Incl Refs 26 - 31

1шт.

With Field Tracker

1шт.

With Accumulator

1шт.

26

297976A1

SWITCH

Incl Refs 27, 28

1шт.

27

182068A1

CONNECTOR, ELEC

CONNECTOR

1шт.

28

182070A1

RETAINER

1шт.

29

296852A1

SUPPORT

1шт.

30

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

If Used

2шт.

30

440-10828

SCREW,Cross Pan Hd, #8-32 x 1 3/4"

If Used

2шт.

31

231-51409

SERRATED NUT,Flg, USR, #10-24

If Used

2шт.

31

231-14408

NUT,#8-32, GB

If Used

2шт.

32

302292A1

PLASTIC PLUG

1шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15" (Not Shown)

1шт.

33

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Not Shown

2шт.

Выбрано товаров: 39
