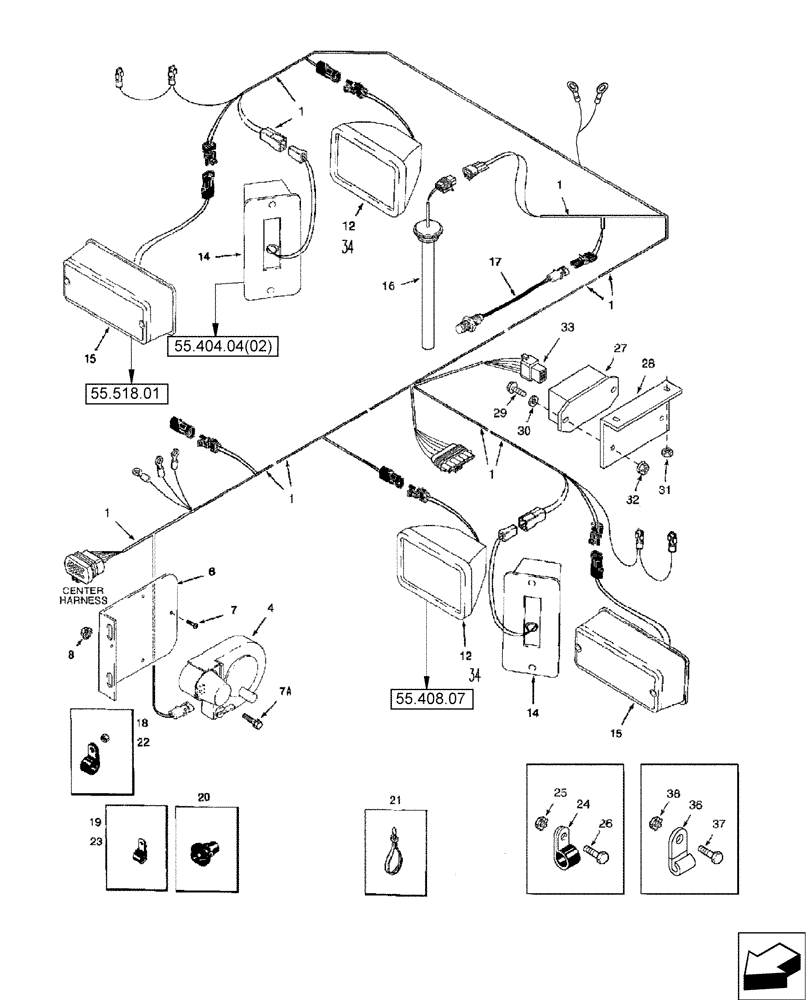

Запчасти Case IH 2588 (55.100.27) - HARNESS, REAR (55) - ELECTRICAL SYSTEMS

1

87379855

WIRE HARNESS

Rear

1шт.

2

187308A1

CAP

Not Shown

1шт.

3

187309A1

BAR

Splice (Not Shown)

1шт.

4

127813A1

LAMP

Service, RH, Incl Ref 5

1шт.

5

H40556

BULB

12V (Not Shown)

1шт.

6

139049A2

SUPPORT

1шт.

7

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

3шт.

7a

905-8020

BOLT,Hex Flg, M8 x 20mm

4шт.

8

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

12

185116A1

HEADLIGHT,12V, 37.5W

Rear Flood, Incl Ref 13

2шт.

13

323094A1

BULB

Type C-6, No. 894 (Not Shown)

1шт.

14

130882C91

LAMP

2шт.

15

92260C1

LAMP,12V, 27W, Red

Stop, Tail

2шт.

16

356872A1

SENDER UNIT

SENDER Fuel Level

1шт.

17

245193C2

SENSOR

Speed, Straw Spreader

1шт.

18

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

3шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

8шт.

18

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

18

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

4шт.

19

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

20

195804C1

GROMMET

1шт.

21

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

22

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

23

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

24

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

26

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

27

86561136

MODULE

Flasher

1шт.

28

393955A1

BRACKET

1шт.

29

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

30

495-11028

WASHER,1/4", SAE

2шт.

31

231-4144

NUT,1/4"-20, GB

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

396377A1

MULTIPOLE CONNECTOR,6 Pin

6 Pin

1шт.

34

430505A1

LAMP,Halogen, 12V, 35W, Clear

2шт.

36

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

37

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

38

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

39

87300598

KIT

Brake Lights, Australian Production Machines, Incl Refs 40 - 44 (Not Shown)

1шт.

40

87300500

HARNESS

Brake Light

1шт.

41

296462A1

SUPPORT

Brake Light Mounting

1шт.

42

1983341C1

SWITCH

2шт.

43

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

44

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

15шт.
