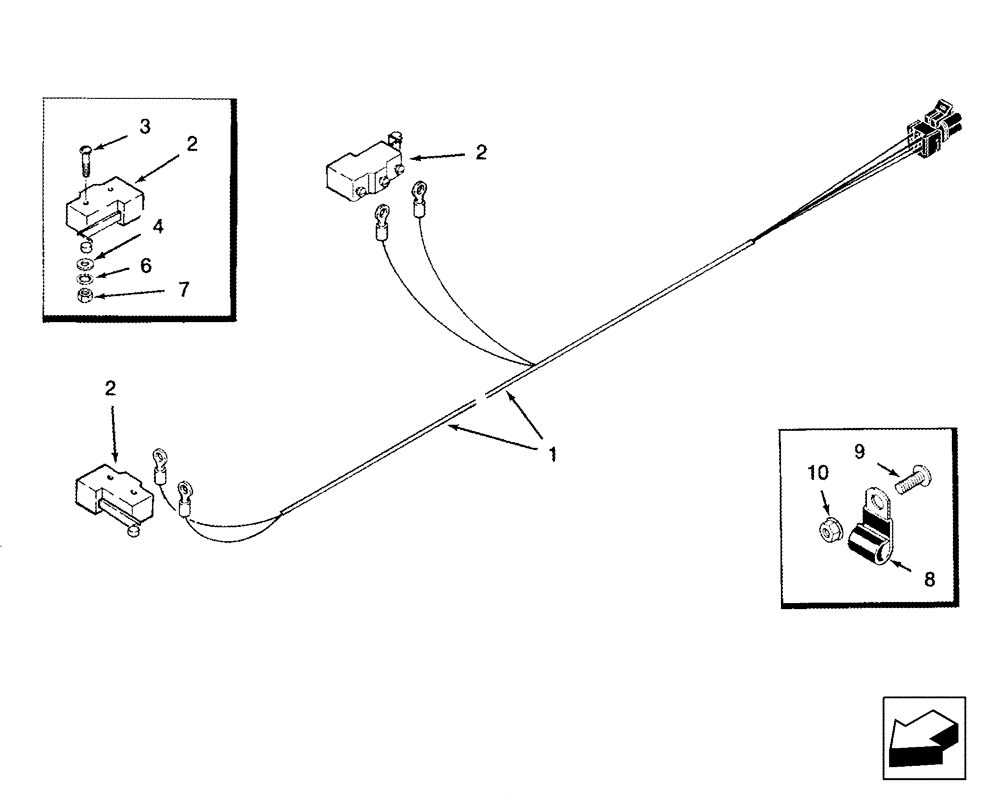

Запчасти Case IH 2588 (55.100.19) - HARNESS - ROTOR LIMIT SWITCH (55) - ELECTRICAL SYSTEMS

1

245240C1

WIRE HARNESS

Rotor Limit Switch

1шт.

2

128298A2

MECHANICAL SWITCH

Rotor Limit

2шт.

3

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

4шт.

4

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

4шт.

6

280384

LOCK WASHER,Int Tooth, #6

4шт.

7

230-42406

LOCK NUT,#6-32, GA

4шт.

8

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

9/16" ID

2шт.

9

477-73808

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1/2"

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.
