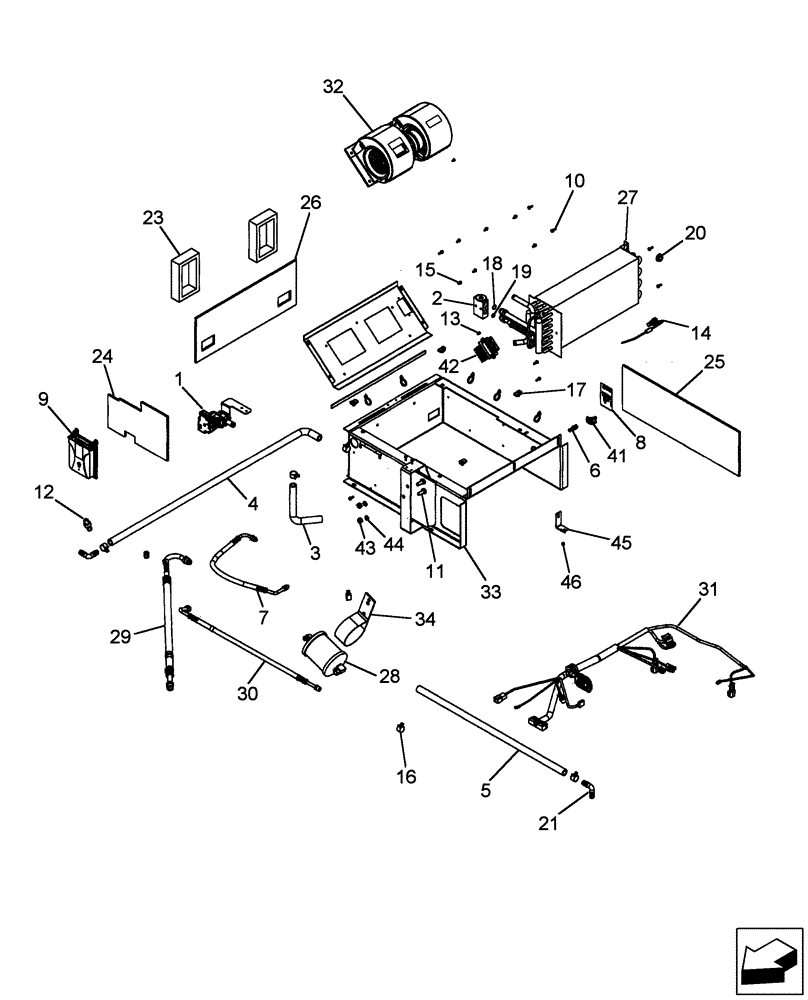

Запчасти Case IH 2588 (50.200.10) - BOX ASSY - AIR CONDITIONING (50) - CAB CLIMATE CONTROL

87313891

UNIT HEATER

Air Conditioning, Incl Refs 1 - 46, Serial Range: -HAJ301330

1шт.

87673824

UNIT HEATER

Air Conditioning, Incl Refs 1 - 46, Start Serial: HAJ301330

1шт.

1

87333840

HEATER VALVE,Water Control

Control, Heater

1шт.

449221A1

BODY

Core Assy, Incl Refs 2, 18, 19, 27

1шт.

2

386535A1

VALVE

Thermal Expansion, Not Serviced Separately, Order P/N 449221A

1шт.

3

377547A1

HOSE,15.50 mm ID

Valve To Core

1шт.

4

377551A1

HEATER HOSE,15.50 mm ID x 838.00 mm

Return

1шт.

5

1958774C1

HEATER HOSE

710 mm (28"), Cut From 97252CX

1шт.

6

87454442

SENSOR

Cab Temperature

1шт.

7

124912A2

HOSE

540 mm (21-1/4")

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE, Decal Name, Kysor Logo

1шт.

9

87314291

MODULE

ATC, With Software Loaded, Serial Range: -HAJ301330

1шт.

9

87365492

MODULE

ATC, Start Serial: HAJ301330

1шт.

84268957R

REMAN ELECT CONTROL

2588 ASN HAJ300001 Start Serial :HAJ301330 ( 10/06 - ) , Reman For New P/N 87365492

1шт.

84268957C

CORE-ELECTRONIC CONT

Return Number

1шт.

10

281-54510

SELF-TAP SCREW,HWH, #10 - 24 x 5/8"

15шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

87323829

SWITCH, A/C LOW PRES

1шт.

13

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

2шт.

14

184720A2

SENSOR

Temperature, Evaporator

1шт.

15

87333919

CAPTIVE WASHER SCREW,Sl Hex, Tap, #10 - 32 x 3/8"

Taplite Slot

1шт.

16

1954736C1

HOSE CLAMP,#24

6шт.

17

488837C1

SPRING NUT

5/16"

4шт.

18

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16" ID x 1/16", Not Serviced Separately, Order P/N 449221A

1шт.

19

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16" ID x 1/16", Not Serviced Separately, Order P/N 449221A

1шт.

20

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

1шт.

21

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

22

377566A1

GASKET

3 FT

1шт.

23

124999A1

GASKET

2шт.

24

87333847

FOAM INSULATION

LH

1шт.

25

279230A2

INSULATOR

RH

1шт.

26

279233A1

INSULATOR

Front

1шт.

27

377560A1

CORE-COMPRESSOR

Evaporator and Heater, Not Serviced Separately, Order P/N 449221A

1шт.

28

1990758C2

RECEIVER-DRYER

1шт.

29

124913A2

HOSE

900 mm (35-7/16")

1шт.

30

124914A1

HOSE

662 mm (26-1/8"), Receiver-Dryer To Cab Wall

1шт.

31

87333848

WIRE HARNESS

Heating and Air Conditioning

1шт.

32

323610A1

BLOWER

1шт.

84222524R

REMAN-BLOWER

2588 ASN HAJ300001 (10/06-), Reman for New P/N 323610A1

1шт.

84222524C

CORE-BLOWER

Return Number

1шт.

33

87333857

BOX

Air Conditioning Module

1шт.

34

377562A1

BRACKET

Receiver-Drier

1шт.

35

702093C1

CABLE TIE

CABLE STRAP

6шт.

36

87333863

MOUNTING PLATE

1шт.

37

377559A1

STRAP

2шт.

38

377567A1

SEAL

8 FT (Not Shown)

1шт.

39

87333865

FOAM INSULATION

Not Shown

1шт.

40

1978896C1

STRAP

30.6" Tie-down (Not Shown)

4шт.

41

87318294

CLIP

Sensor

1шт.

42

87306706

TERMINAL CONNECTOR

Blower Motor

1шт.

43

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

44

892-11010

LOCK WASHER,M10

2шт.

45

87351204

BRACKET

Sensor

1шт.

46

231-14408

NUT,#8-32, GB

1шт.

47

87740399

CONTROL PANEL

ATC HVAC Unit (Not Shown)

1шт.
