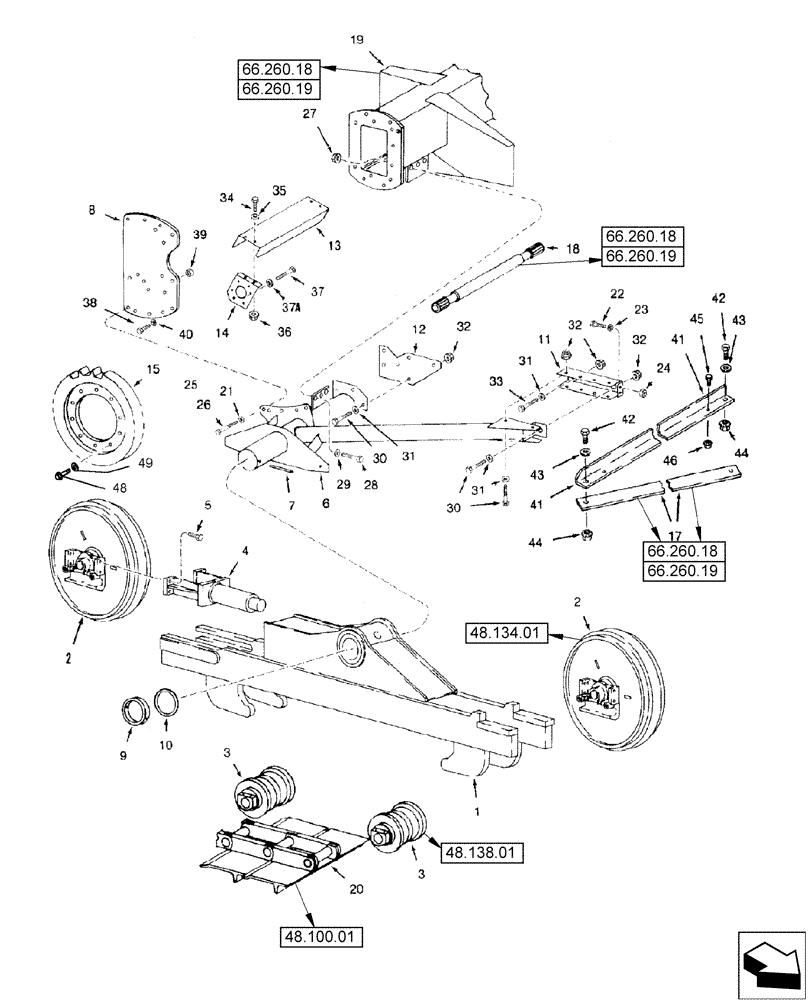

Запчасти Case IH 2588 (48.050.01) - TRACK - FRAME (48) - TRACKS & TRACK SUSPENSION
№
Артикул
Название
Примечание
Количество
1541592C1
FRAME ASSY
Track, 6 Roller, Incl Refs 1 - 5
2шт.
1
NSS
NOT SOLD SEPARAT
FRAME, Track
1шт.
2
R53591
FRONT IDLER
Track, Front and Rear
2шт.
3
427112A1
ROLLER, TRACK
6шт.
4
1541714C1
ADJUSTER
Idler, Not Serviced Separately
1шт.
5
426-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
4шт.
6
188487C2
FRAME
Track, LH
1шт.
6
188488C3
FRAME
Track, RH
1шт.
7
38-13280
LOCK PIN,12.7mm OD x 127mm L, Coiled
Replaces P/N 23854R1
2шт.
8
186832C2
PLATE
Outer Pivot Support
2шт.
9
167791C1
SPACER
Pivot Retainer
2шт.
10
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
4шт.
11
188496C1
SUPPORT
Pivot Rear Anchor, LH
1шт.
11
188497C1
SUPPORT
Pivot Rear Anchor, RH
1шт.
12
186006C1
SUPPORT
Inner Pivot
2шт.
13
1338130C1
SHIELD
Axle Drive Shaft
2шт.
14
186016C4
SUPPORT
Outer Shaft, LH
1шт.
14
186017C4
SUPPORT
Outer Shaft, RH
1шт.
15
87615809
SPROCKET
2шт.
17
186018C1
STRAP
2шт.
18
135705A1
SHAFT
2шт.
Models With Track Attachment
1шт.
19
136417A3
AXLE
1шт.
Models With Track Attachment
1шт.
20
1541593C1
TRACK CHAIN
With Shoes, Order Components
2шт.
21
496-11081
WASHER,13/16" x 1 1/2" x .134", HDN
14шт.
22
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
4шт.
23
492-11038
LOCK WASHER,3/8"
4шт.
24
429-106
NUT,3/8"-16, G8
4шт.
25
426-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8
10шт.
26
426-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 8
4шт.
27
186852C1
FLANGE NUT,Hex, 1/2"-13, Lock
1/2", 8
6шт.
28
426-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
6шт.
29
496-21053
WASHER,17/32" x 1 1/16" x .134"
6шт.
30
426-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8
22шт.
31
396-41066
WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk
26шт.
32
186851C1
FLANGE NUT
5/8", 8
24шт.
33
426-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8
2шт.
34
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
4шт.
35
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
4шт.
36
231-5146
FLANGE NUT,3/8"-16
4шт.
37
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
6шт.
37a
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
6шт.
38
426-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8
10шт.
39
429-1012
NUT,3/4"-10, G8
10шт.
40
392-21075
LOCK WASHER,3/4"
10шт.
41
186025C1
BRACKET
Main Sill Center Cross
1шт.
42
426-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
2шт.
43
496-21053
WASHER,17/32" x 1 1/16" x .134"
2шт.
44
186852C1
FLANGE NUT,Hex, 1/2"-13, Lock
1/2", 8
2шт.
45
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
46
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
48
87340028
BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9
20шт.
49
87327481
WASHER,23mm ID x 37mm OD x 5mm Thk
Dual Wheel
20шт.
Выбрано товаров: 54
