Запчасти Case IH 2588 (44.151.04) - AXLE - ADJUSTABLE STEERING, SINGLE CYLINDER (44) - WHEELS

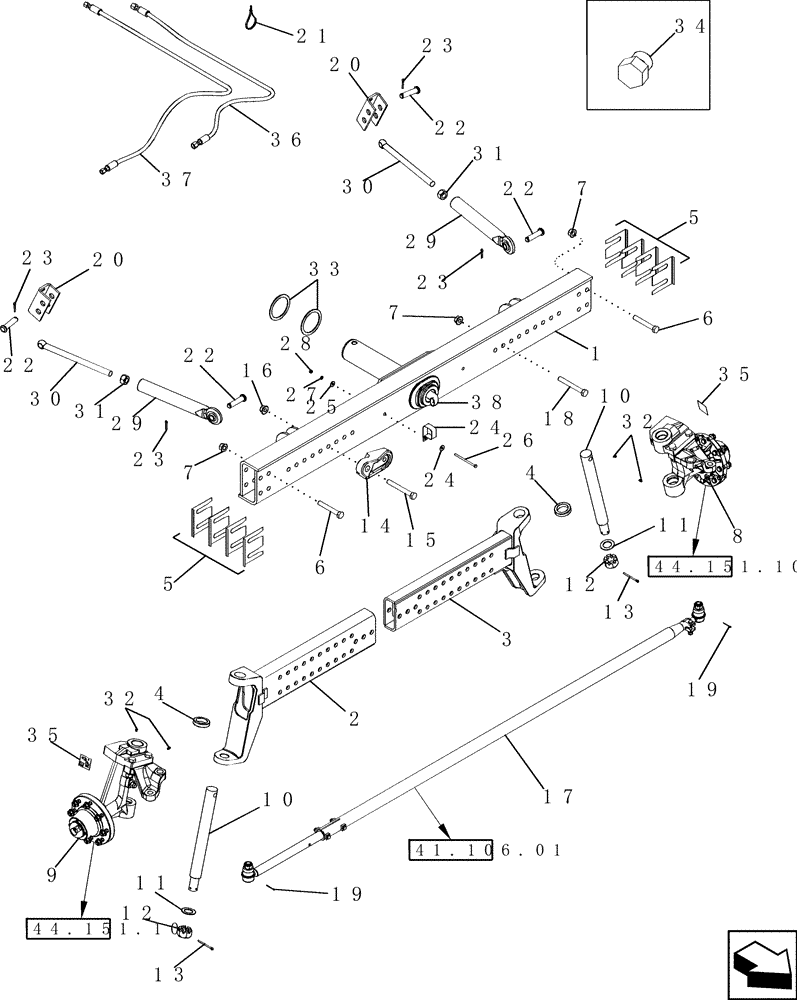

Схема запчастей Case IH 2588 - (44.151.04) - AXLE - ADJUSTABLE STEERING, SINGLE CYLINDER (44) - WHEELS
5
32
5
22
10
24
23
20
15
18
32
44.151.10
44.151.10
41.106.01
4
20
13
12
35
29
36
22
25
9
23
35
28
14
37
4
17
30
11
29
11
8
31
2
7
23
12
16
21
23
6
1
22
6
19
13
33
7
27
38
22
3
19
31
24
7
26
34
10
30

Артикул

Название

Примечание

Количество

1

87565764

CENTER AXLE

Adjustable

1шт.

2

87526449

EXTENSION

Axle Guide Wheel, LH

1шт.

3

87526450

EXTENSION

Axle Guide Wheel, RH

1шт.

4

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

Front Wheel Spindle

2шт.

5

236028A2

SHIM,127mm OD x 0.9mm Thk

Axle Tube

8шт.

6

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

8шт.

7

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

10шт.

8

Knuckle ASSY, RH

1шт.

9

Knuckle ASSY, LH

1шт.

10

186052C1

PIN,50.8mm OD x 508mm L

King, Guide Wheel

2шт.

11

495-81224

WASHER,38.89mm ID x 63.5mm OD x 3.35mm Thk

2шт.

12

425-1224

SLOTTED NUT,1 1/2"-6, G5

2шт.

13

432-1648

COTTER PIN,1/4" x 3"

2шт.

14

87530632

SUPPORT

Steering Cylinder, LH, Serial Range: -HAJ301663

1шт.

14

87629009

BRACKET

Steering Cylinder, LH, Start Serial: HAJ301663

1шт.

15

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

, Serial Range: -HAJ301663

2шт.

15

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

, Start Serial: HAJ301663

3шт.

16

232-53112

FLANGE NUT,Flg, 3/4"-10

, Serial Range: -HAJ301663

2шт.

16

232-53112

FLANGE NUT,Flg, 3/4"-10

, Start Serial: HAJ301663

3шт.

17

86984114

KIT

Tie Rod ASSY

1шт.

18

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

19

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

20

1541603C1

SUPPORT

Front Stabilizer Bar, Serial Range: -HAJ303001

2шт.

20

87590286

BRACKET

Front Stabilizer Bar, Start Serial: HAJ303001

2шт.

21

291207C1

CLAMP

Rear Steering Hoses

1шт.

22

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

4шт.

23

432-1620

COTTER PIN,1/4" x 1 1/4"

4шт.

24

1301387C2

CLIP

1шт.

25

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

2шт.

26

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

27

492-11031

LOCK WASHER,5/16"

1шт.

28

425-105

NUT,5/16"-18, G5

1шт.

29

181444C1

TIE-ROD,1" - 8

2шт.

30

181442C3

EYEBOLT,1" - 8 x 381mm

BOLT, EYE Axle Rod

2шт.

31

425-1016

NUT,1"-8, G5

2шт.

32

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

33

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

Track Pivot Shaft

2шт.

34

218-5155

PLUG,9/16" - 18 ORB

1шт.

35

181992A1

DECAL

2шт.

36

128083A2

FLEXIBLE HOSE

Steering, Rear

1шт.

37

128088A2

FLEXIBLE HOSE

Steering, Rear

1шт.

38

229298A1

BOOT

Steering Hoses

1шт.

Выбрано товаров: 42
