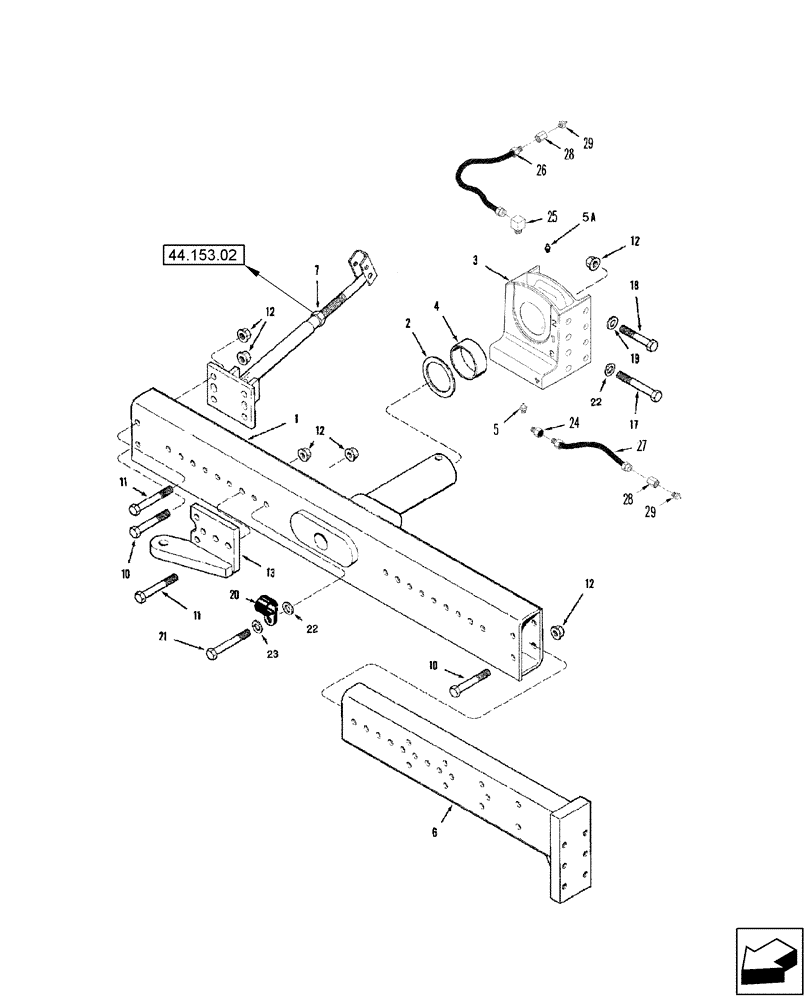

Запчасти Case IH 2588 (44.151.02) - AXLE, STEERING - EXTENSIONS - POWER GUIDE AXLE - SINGLE STEERING CYLINDER (44) - WHEELS

1

413204A1

AXLE

Adjustable, Serial Range: 108-144"

1шт.

2

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

4шт.

3

386235A2

SUPPORT

Axle Pivot, Incl Ref 4

1шт.

4

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

6

1968992C1

AXLE

108 To 144"

2шт.

7

NSS

NOT SOLD SEPARAT

Support ASSY

2шт.

10

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

11шт.

11

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

12

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

1шт.

13

1968993C1

SUPPORT

1шт.

17

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

3шт.

18

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

6шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

5шт.

20

195618A1

CLAMP

1-7/8" ID

1шт.

21

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

22

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

3шт.

23

495-11081

WASHER,3/4", SAE

1шт.

24

219-418

ADAPTER,1/4"-1/8 NPTF

Hose

1шт.

25

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1шт.

26

428285A1

FLEXIBLE HOSE

Grease, 1186 mm (46-3/4")

1шт.

27

428853A1

FLEXIBLE HOSE

Grease, 1282 mm (50")

1шт.

28

F53473

LOCK NUT,1/8-27 NPSM

1/8"

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
