Запчасти Case IH 2588 (41.216.04) - STEERING CYLINDER AND TIE ROD - POWER GUIDE AXLE - DUAL STEERING CYLINDER (41) - STEERING

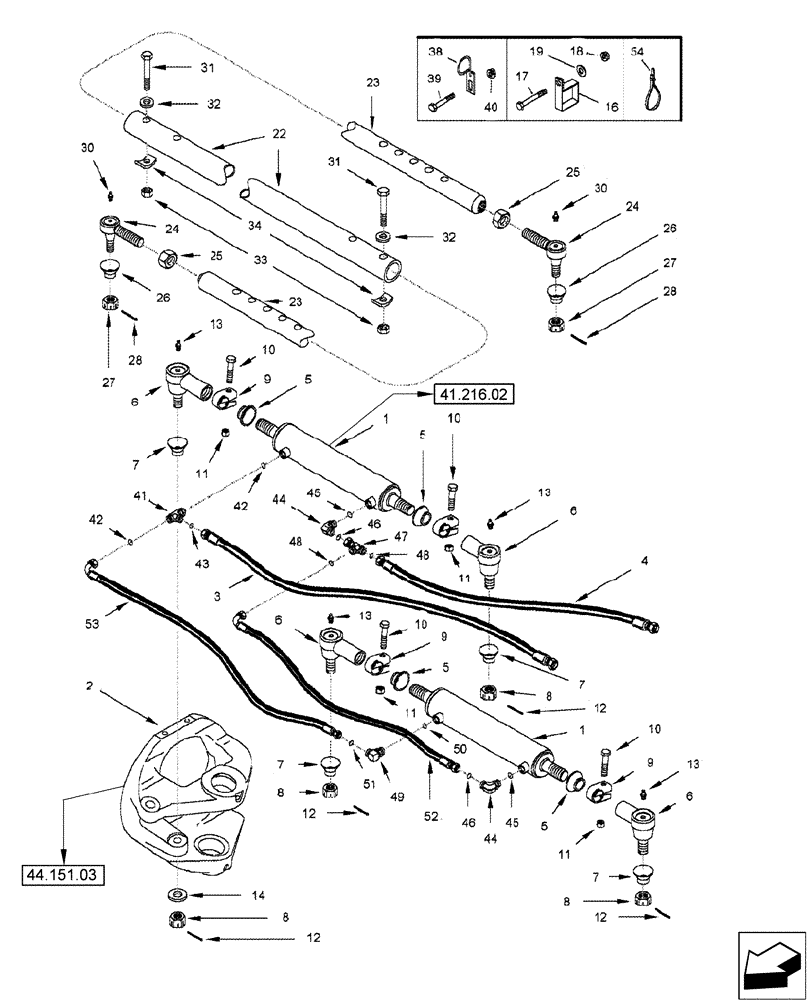

Схема запчастей Case IH 2588 - (41.216.04) - STEERING CYLINDER AND TIE ROD - POWER GUIDE AXLE - DUAL STEERING CYLINDER (41) - STEERING
38
43
7
4
54
46
40
49
9
53
10
13
33
23
19
41
13
11
6
32
42
42
11
10
12
11
10
28
8
3
25
27
7
1
39
24
11
34
30
5
26
6
14
50
12
31
44
8
51
6
7
2
9
13
18
10
45
24
26
7
22
12
52
6
48
12
9
46
27
47
31
5
30
48
32
25
44
16
5
28
8
13
41.216.02
45
44.151.03
5
17
1
23
8

Артикул

Название

Примечание

Количество

1

87337229

CYLINDER

57 ID x 229 mm Strk

2шт.

2

NSS

NOT SOLD SEPARAT

Carrier

2шт.

3

87564463

HOSE ASSY.

2160 mm (85")

1шт.

4

128084A2

FLEXIBLE HOSE

1960 mm (77-1/8")

1шт.

5

229298A1

BOOT

4шт.

6

437222A1

BALL JOINT

Incl Refs 7 - 11

4шт.

7

87301009

BOOT

1шт.

8

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

9

446308C91

CLAMP

Incl Refs 10, 11

1шт.

10

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

1шт.

11

231-4117

LOCK NUT,7/16"-14, GB

1шт.

12

432-816

COTTER PIN,1/8" x 1"

1шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

4шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

5шт.

14

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

16

406800A1

CLAMP

2шт.

17

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

18

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

2шт.

19

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

2шт.

22

1970102C1

TUBE

Outer

1шт.

23

1970103C1

TUBE,1.062" ID, 1.625" OD, 33" Length

Tie Rod, Inner

2шт.

24

1968998C1

BALL JOINT

2шт.

25

1970391C1

JAM NUT

1-1/8" NF

2шт.

26

110373R1

DUST CAP

2шт.

27

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

28

432-816

COTTER PIN,1/8" x 1"

4шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

31

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

4шт.

32

1970104C1

SPACER

4шт.

33

232-4118

NUT,1/2"-13, GC

4шт.

34

1970101C1

CLAMP

4шт.

38

1970383C1

GUIDE

Hose

4шт.

39

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

39

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

40

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

4шт.

41

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Incl Refs 42, 43

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

44

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Refs 45, 46

2шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

46

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

47

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Incl 48

1шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

49

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Refs 45, 51

1шт.

50

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

51

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

52

87555149

HOSE ASSY.

1670 mm (65-3/4")

1шт.

53

87555150

HOSE ASSY.

1740 mm (68-1/2")

1шт.

54

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

Выбрано товаров: 49
