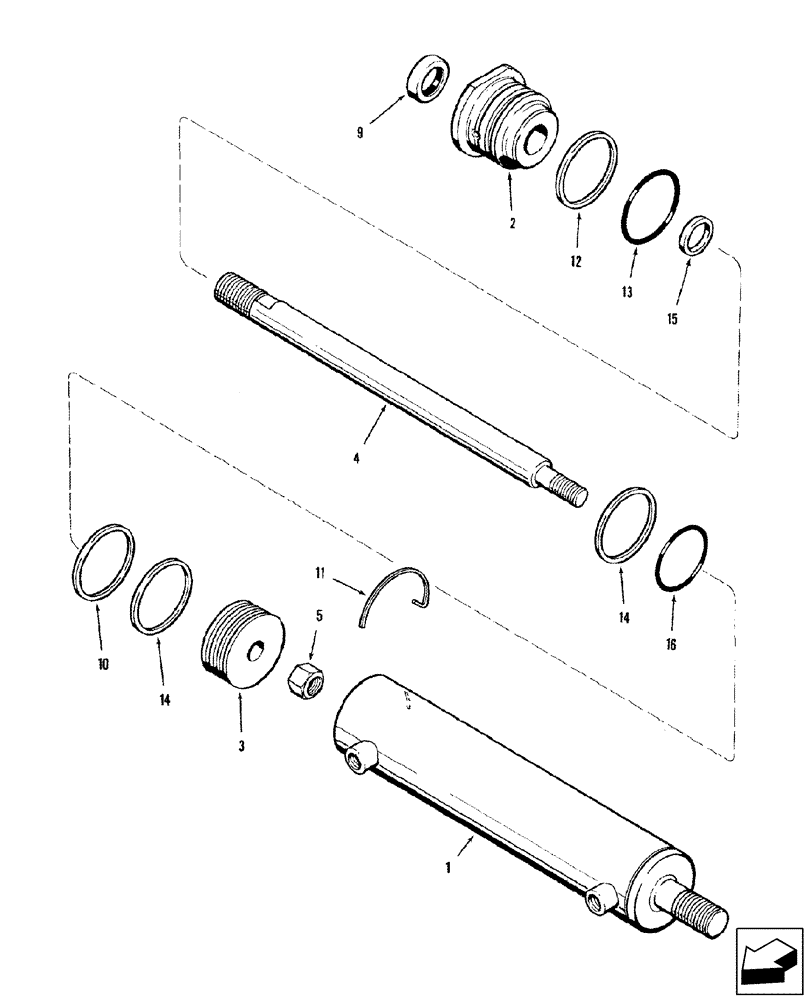

Запчасти Case IH 2588 (41.216.01) - CYLINDER ASSY - STEERING (41) - STEERING

87337226

CYLINDER,Double Acting, 25.4mm Rod, 228.6mm Stroke

Incl Refs 1 - 16

1шт.

87337226R

REMAN-HYD CYLINDER

2588 ASN HAJ300001 ( 10/06 - )

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

ROD

1шт.

5

NSS

NOT SOLD SEPARAT

NUT

1шт.

87364276

SERVICE KIT

Incl Refs 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER

1шт.

10

NSS

NOT SOLD SEPARAT

RING

1шт.

11

NSS

NOT SOLD SEPARAT

LOCKING DEVICE

1шт.

12

NSS

NOT SOLD SEPARAT

RING

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.
