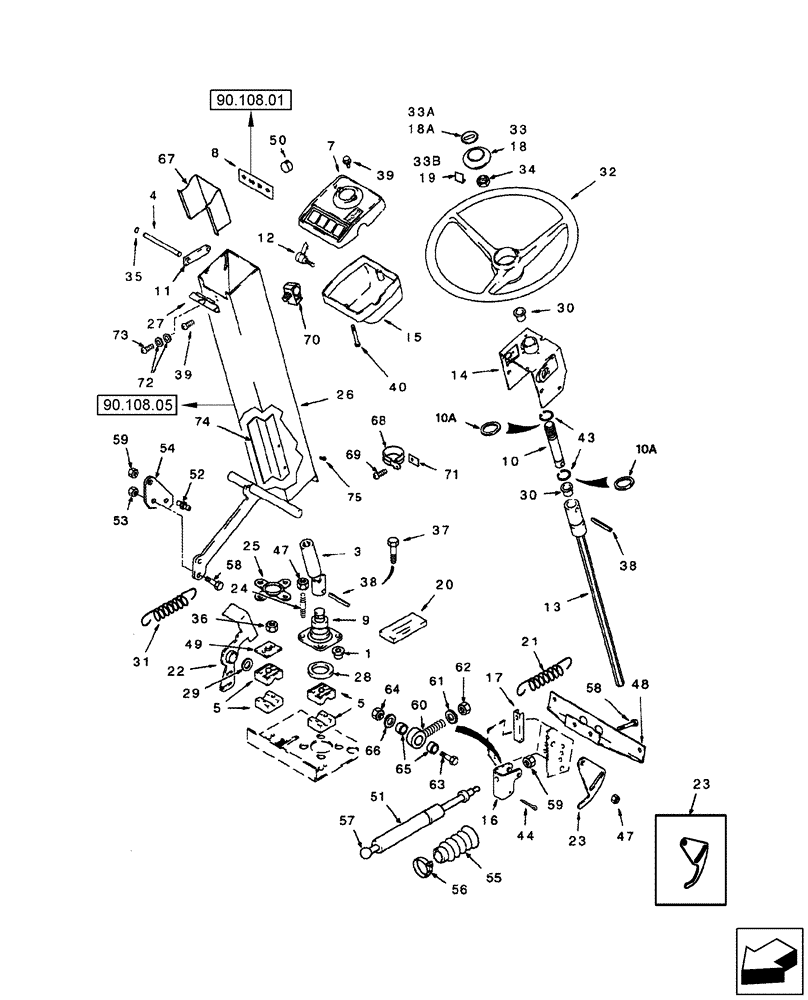

Запчасти Case IH 2588 (41.204.08) - STEERING COLUMN - WHEEL (41) - STEERING

1

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

Vibration Damper

4шт.

3

119760A1

FLEXIBLE JOINT

Lower

1шт.

4

119830A1

ROD

9.5 x 111 mm

1шт.

5

120326A2

BALL BEARING,24 mm

4шт.

7

87313673

BRACKET

Steering Console

1шт.

8

120332A1

DECAL

Directional Arrows

1шт.

9

120338A2

STEERING COLUMN

1шт.

10

124054A3

SHAFT

1шт.

Also Order Ref 10A

1шт.

10a

495-81051

WASHER,29/32" x 1 1/4" x .060"

2шт.

11

127040A2

PLATE

1шт.

12

129255A1

HANDLE

Tilt Linkage

1шт.

13

130952A2

FLEXIBLE JOINT

1шт.

14

130953A3

SUPPORT

1шт.

15

130956A4

COVER

1шт.

16

224761A1

CLEVIS

1шт.

17

130958A2

CHANNEL

1шт.

18

238697A1

CAP

Steering Wheel, With AFS Insert, Incl Refs 18A, 19, If Equipped

1шт.

18a

238696A1

EMBLEM

SYMBOL Advanced Farming System

1шт.

19

1329896C1

CLASP

3шт.

20

130961A1

FOAM INSULATION

2шт.

21

130962A2

SPRING

27.9 OD x 122 mm

1шт.

22

136798A1

PEDAL

Tilt Release

1шт.

23

446632A1

BRACKET

1шт.

24

136802A1

STUD

10 x 48 mm, Pump Mounting

1шт.

25

136805A1

RETAINER

1шт.

26

192374A5

STEERING COLUMN

Incl Decal P/N 239509A1

1шт.

27

136919A1

COVER

1шт.

28

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

1шт.

29

185062R1

BUSHING

1шт.

30

373445R1

BUSHING,22.25mm ID x 22.99mm L

2шт.

31

182652A1

SPRING

27.9 OD x 122 mm, Upper

1шт.

32

251342A1

STEERING WHEEL

1шт.

33

187177A1

CAP

Incl Refs 33A, 33B, If Equipped

1шт.

33a

1342054C1

PLASTIC PLUG

Black

1шт.

33b

1329896C1

CLASP

3шт.

34

F19646

LOCK NUT,13/16"-20, Thin

1шт.

35

100-3337

SNAP RING,E-Type, 0.3" OD

2шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

37

905-10035

BOLT,Hex Flg, M10 x 35mm

3шт.

38

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

2шт.

39

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

40

540-714

SCREW,Pan HD, M3 x 45mm, Cl 4.8

2шт.

43

100-1187

SNAP RING,#87, Ext

2шт.

44

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

47

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

48

120143A4

SUPPORT

1шт.

49

185268A1

PLATE

2шт.

50

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

Without Ether Start Attachment

1шт.

51

224357A1

GAS STRUT

1шт.

52

142597A1

STUD

1шт.

53

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

54

223917A1

PLATE

1шт.

55

195089A1

BOOT

Cylinder

1шт.

56

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

57

3233348R1

CLIP

Cylinder

1шт.

58

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

59

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

60

224235A1

BALL JOINT

1шт.

61

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

62

425-115

NUT,5/16"-24, G5

1шт.

63

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

64

425-105

NUT,5/16"-18, G5

1шт.

65

224089A1

SPACER

2шт.

66

492-11031

LOCK WASHER,5/16"

2шт.

67

231985A1

GUARD

Wiring

1шт.

68

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

69

1276119C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

1шт.

70

233185A1

CLIP,ELECTRICAL

1шт.

71

233186A1

NUT

1шт.

72

492-11010

LOCK WASHER,#10

1шт.

73

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

3шт.

74

400648A1

SHIELD

1шт.

75

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.
