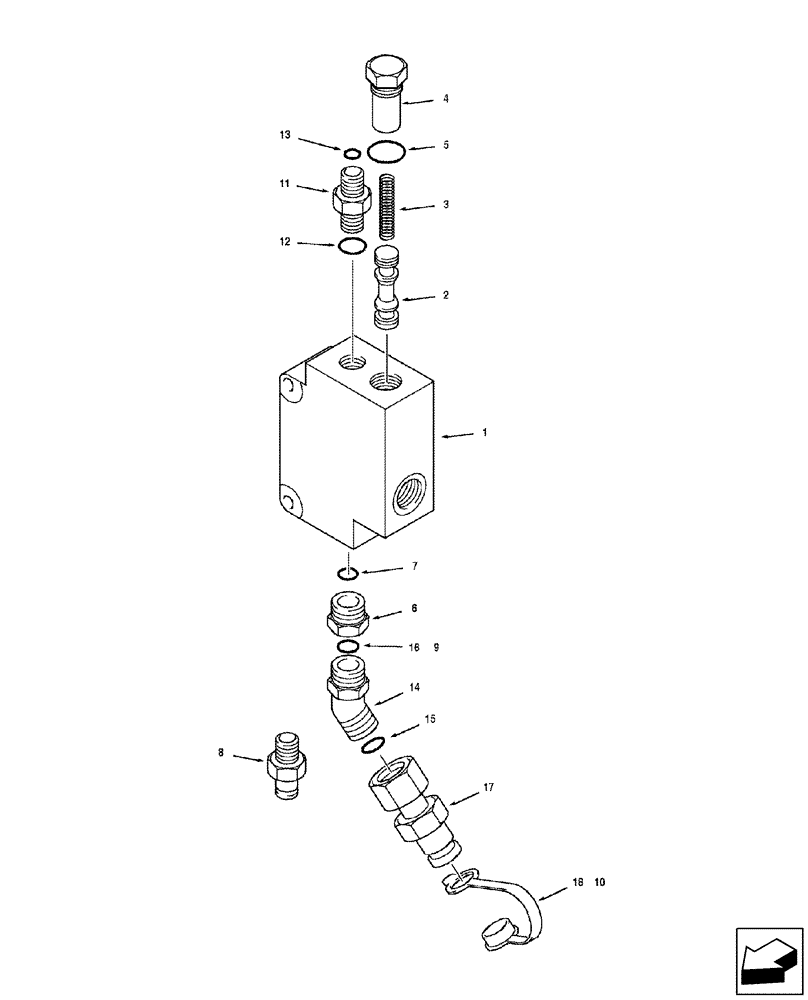

Запчасти Case IH 2588 (41.200.06) - VALVE ASSY - STEERING PRIORITY (41) - STEERING
№
Артикул
Название
Примечание
Количество
114851A2
VALVE
Steering, Incl Refs 1 - 10D
1шт.
1
NSS
NOT SOLD SEPARAT
BODY
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
3
192146A1
SPRING
1шт.
4
192145A1
PLUG
Incl Ref 5
1шт.
5
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
6
192149A1
FITTING
Incl Ref 7
1шт.
7
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
8
1541849C1
COUPLING
Diagnostic, Incl Refs 9, 10
1шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
10
H434163
DUST CAP
1шт.
230984A1
KIT
Screen and Orifice, Incl Refs 10A - 10D
1шт.
10a
NSS
NOT SOLD SEPARAT
ORIFICE, Spool (Not Shown)
1шт.
10b
NSS
NOT SOLD SEPARAT
ORIFICE, Spool (Not Shown)
1шт.
10c
NSS
NOT SOLD SEPARAT
SCREEN, Spool (Not Shown)
2шт.
10d
NSS
NOT SOLD SEPARAT
O-RING
1шт.
11
128328A1
FITTING
W/Orifice Check Valve, Incl Refs 12, 13
1шт.
12
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
13
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
14
201-328
ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB
Incl Refs 15, 16
1шт.
15
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
16
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
17
190117A1
COUPLING
Diagnostic, Incl Ref 18
1шт.
18
H434163
DUST CAP
1шт.
Выбрано товаров: 24
