Запчасти Case IH 2588 (35.450.01) - REEL DRIVE - COUPLING MOUNTING (35) - HYDRAULIC SYSTEMS

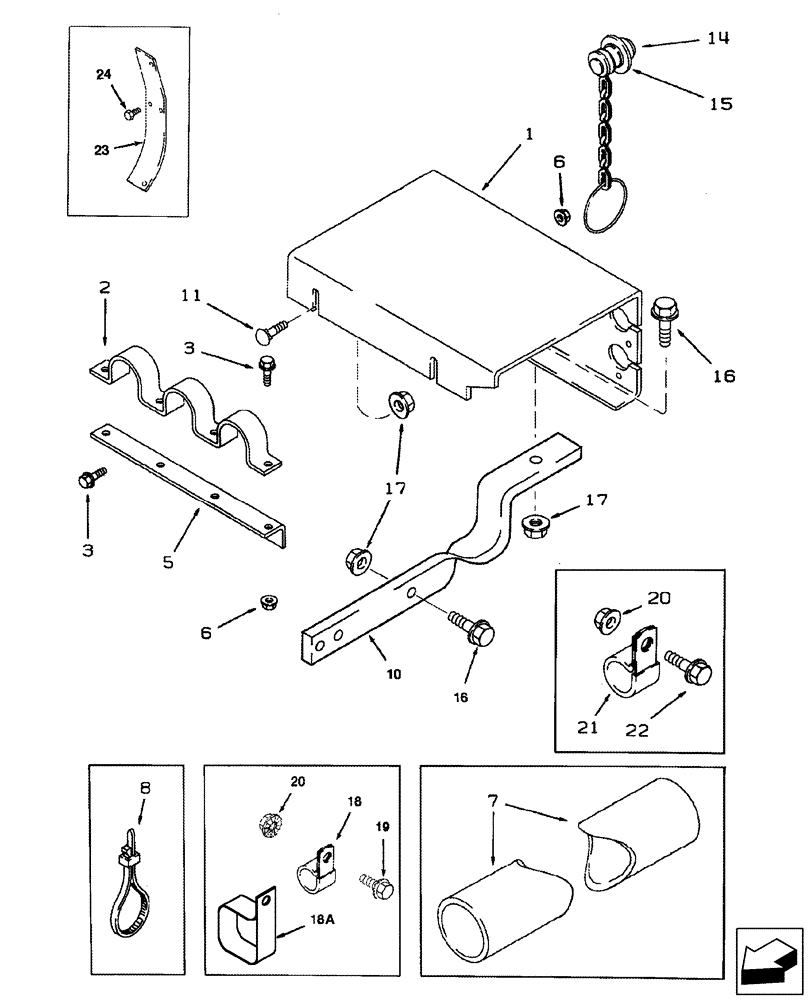

Схема запчастей Case IH 2588 - (35.450.01) - REEL DRIVE - COUPLING MOUNTING (35) - HYDRAULIC SYSTEMS
3
6
15
24
21
11
3
17
8
6
5
18a
20
16
1
22
16
19
17
20
2
14
23
18
10
7

Артикул

Название

Примечание

Количество

1

139828A2

SUPPORT

Feeder Hoses

1шт.

2

1321990C1

CLAMP

1шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

4шт.

5

1321989C2

SUPPORT

Coupling

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

7

395784A1

SLEEVE

2000 mm (78-3/4")

1шт.

8

306132C1

CABLE TIE,14.5" L

CABLE STRAP

2шт.

10

139045A2

SUPPORT

Feeder Hoses

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

14

1954133C1

PLUG

Incl Ref 15, Coupling

1шт.

15

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

17

231-5146

FLANGE NUT,3/8"-16

10шт.

18

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.

18a

1301387C2

CLIP

Square

2шт.

19

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.

20

231-5146

FLANGE NUT,3/8"-16

2шт.

21

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

23

294511A1

SUPPORT

Feeder Hoses

1шт.

24

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

Выбрано товаров: 21
