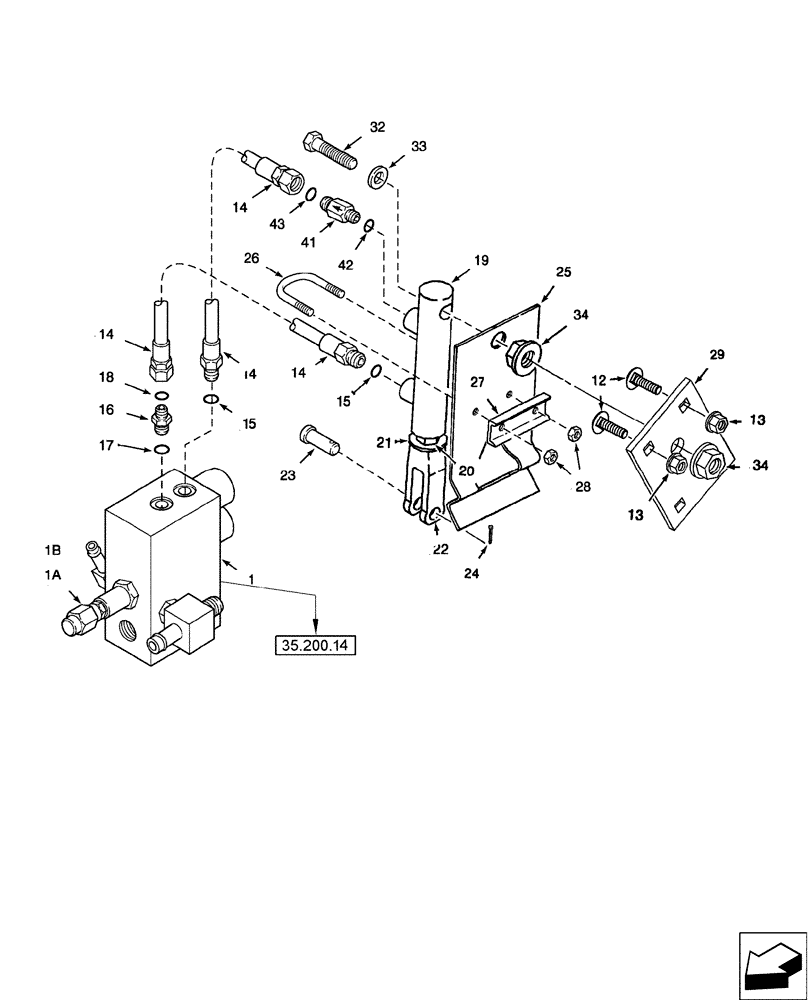

Запчасти Case IH 2588 (35.440.05) - HYDRAULICS - UNLOADER CLUTCH (35) - HYDRAULIC SYSTEMS

1

384307A1

SOLENOID VALVE

Pressure Regulator, Incl Refs 1A, 1B

1шт.

1a

377593A1

VALVE PRESSURE RELIE

Regulator, Incl Ref 1B

1шт.

1b

190709A1

SEAL KIT

Valve Cartridge (Not Shown)

1шт.

12

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

128068A2

FLEXIBLE HOSE

760 mm (30"), Incl Ref 15, At Unloader Clutch Cylinder

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Refs 17, 18

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

87337243

CYLINDER,Double Acting, 12.7mm Rod, 69.85mm Stroke

Unloader Clutch

1шт.

20

425-118

NUT,1/2"-20, G5

1шт.

21

189153A1

WASHER

1шт.

22

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

23

427-8136

CLEVIS PIN,1/2" x 1.360"

1шт.

24

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

25

175611A2

HOLDER

1шт.

26

188528A1

U-BOLT,1/4" - 20 x 34.80mm W x 44mm L, Gr 5

BOLT "U"

1шт.

27

176023A2

SUPPORT

1шт.

28

425-104

NUT,1/4"-20, Cl 5

2шт.

29

112942A2

PLATE

1шт.

32

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

33

495-11066

WASHER,5/8", SAE

1шт.

34

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

41

327679A1

CHECK VALVE

Inline, Incl Refs 42, 43, To Slow Unloader Engagement

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
