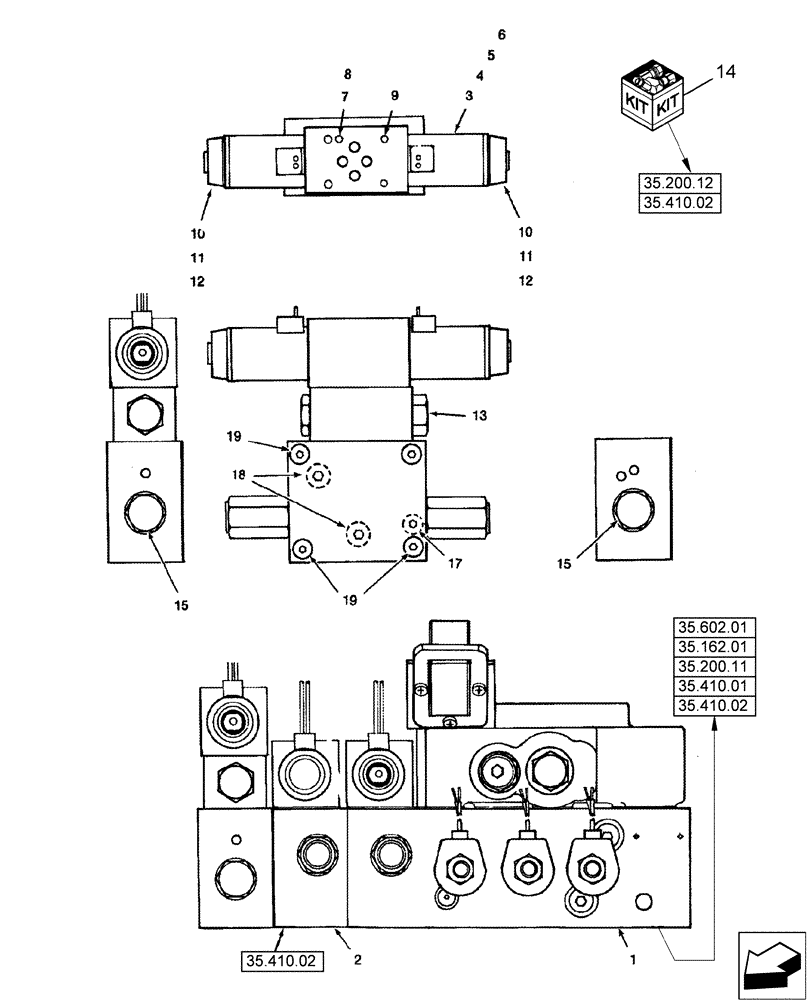

Запчасти Case IH 2588 (35.410.03) - VALVE ASSY - CONTROL - HEADER LIFT WITH REEL FORE AND AFT AND FIELD TRACKER (35) - HYDRAULIC SYSTEMS

124567A3

VALVE, CONTROL

Multi Section, Incl Refs 1 - 20, Header Lift With Reel Fore and Aft and Field Tracker

1шт.

NSS

NOT SOLD SEPARAT

Body, One Piece Valve, Production Only, Service Body With Complete Valve ASSY P/N 124567A3 Above, Incl Refs 3 - 20

1шт.

124567A3R

REMAN-HYD VALVE

Reman Multi Section, Incl Refs 1 - 20, Header Lift With Reel Fore and Aft and Field Tracker

1шт.

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

1

124565A3

VALVE, CONTROL

Header Lift

1шт.

2

131153A2

CONTROL VALVE

Reel Fore and Aft

1шт.

114854A1

CONTROL VALVE

Incl P/N 190984A1, Refs 3 - 20, Field Tracker

1шт.

190984A1

VALVE

Incl Refs 3 - 12, 4-Way, 3 Position, Stack

1шт.

3

196736A1

BODY

Solenoid

2шт.

4

196737A1

SPLIT PIN/SAFETY PIN

2шт.

5

196738A1

SPRING

2шт.

6

196739A1

WASHER

2шт.

7

196712A1

PLUG

Orifice 0.035"

1шт.

8

196713A1

PLUG

Orifice 0.043"

1шт.

191120A1

SEAL KIT

Repair, 4-Way, 3 Position Valve (Not Shown)

1шт.

9

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

9

61-31044

HEX SOC SCREW,#10 - 24 x 2 3/4"

4шт.

10

191119A1

SOLENOID

Coil, With Diode, 12 Volt, DC

2шт.

11

188106A1

NUT

2шт.

12

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

13

190985A1

VALVE

Incl Ref 14, Double Pilot Operated

1шт.

14

191120A1

SEAL KIT

Repair, Check Valve (Not Shown)

1шт.

15

190986A1

VALVE PRESSURE RELIE,7/8" - 14

Incl Ref 16

2шт.

16

149942C1

SEAL KIT

Relief Valve (Not Shown)

1шт.

17

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

18

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

4шт.

19

861-10130

HEX SOC SCREW,M10 x 130mm, Cl 12.9

4шт.

20

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

Not Used in this Application (Not Shown)

4шт.
