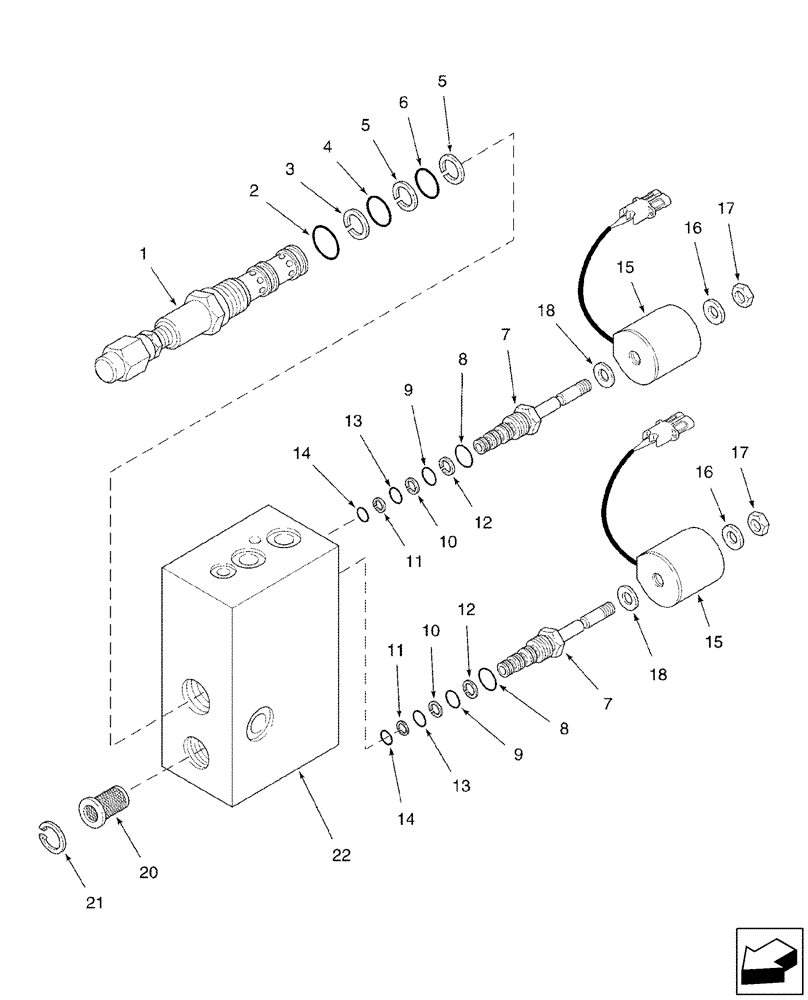

Запчасти Case IH 2588 (35.200.14) - VALVE ASSY - CLUTCH, SEPARATOR/UNLOADER (35) - HYDRAULIC SYSTEMS

384307A1

SOLENOID VALVE

Pressure Regulator, RH, Refs 1 - 22

1шт.

1

377593A1

VALVE PRESSURE RELIE

RH, P/N 190709A1

1шт.

190709A1

SEAL KIT

Valve Cartridge, RH, Refs 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

BACK-UP RING

11шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

BACK-UP RING

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

187849C1

SOLENOID VALVE

4-Way, Cartridge Only, RH, 187850C1

2шт.

187850C1

SEAL KIT

RH, Refs 8 - 14

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER

1шт.

1340843C1

SOLENOID,12V

12V, RH, Refs 15 - 18

2шт.

15

NSS

NOT SOLD SEPARAT

COIL

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE

1шт.

17

NSS

NOT SOLD SEPARAT

NUT

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE

1шт.

20

241892A1

FILTER SCREEN

1шт.

21

100-2187

SNAP RING,0.875", Int, #87

1шт.

22

NSS

NOT SOLD SEPARAT

BODY, Valve, Order P/N 399067A1

1шт.
