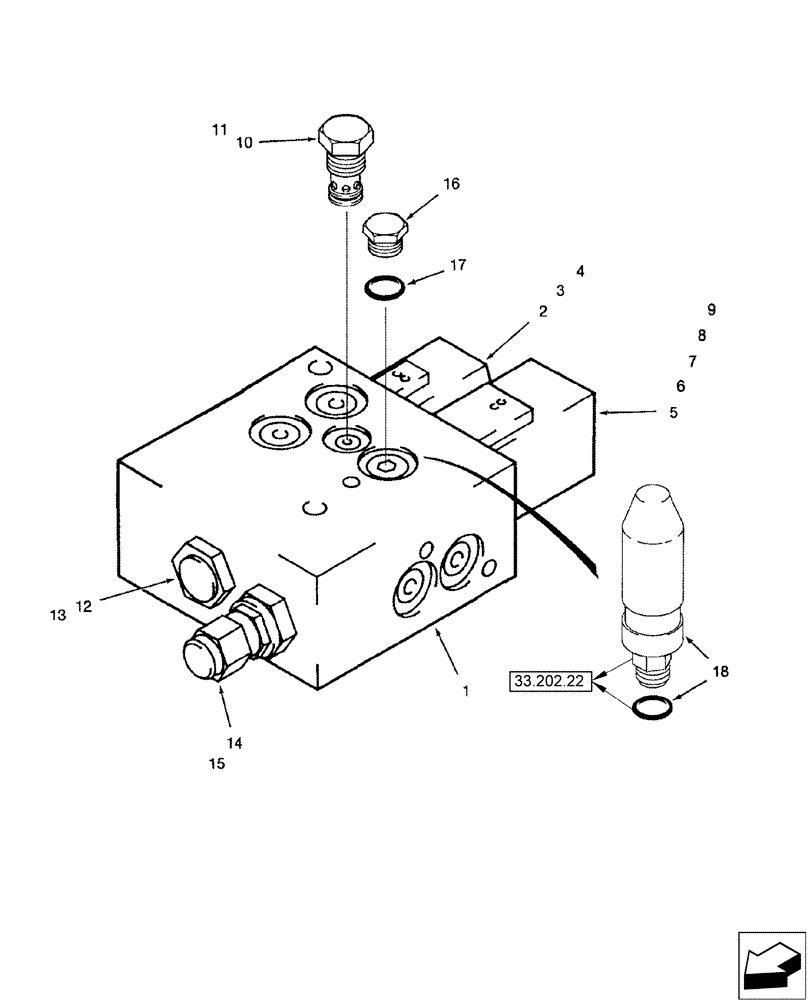

Запчасти Case IH 2588 (35.200.13) - VALVE ASSY - PARKING BRAKE AND FEEDER CLUTCH (35) - HYDRAULIC SYSTEMS

129010A4

CONTROL VALVE

Parking Brake and Feeder Clutch, Incl Refs 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Order P/N 129010A4

1шт.

NSS

NOT SOLD SEPARAT

VALVE 4-Way, Solenoid, Incl Refs 2 - 4, Order Components

1шт.

2

187849C1

SOLENOID VALVE

4-Way, Cartridge Only

1шт.

3

187850C1

SEAL KIT

Not Shown

1шт.

4

1340843C1

SOLENOID,12V

12 V

1шт.

NSS

NOT SOLD SEPARAT

VALVE 3-Way, Solenoid, Incl Refs 5 - 9, Order Components

1шт.

5

1986618C1

SOLENOID

3-Way, Incl Refs 6 - 10

1шт.

6

190703A1

SOLENOID

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

9

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

10

190704A1

CHECK VALVE

Service with Ref 11

1шт.

11

190707A1

SEAL KIT

Not Shown

1шт.

12

190705A1

VALVE POPPET,7/8" - 14

Orifice, Service With Ref 13

1шт.

13

149942C1

SEAL KIT

Not Shown

1шт.

14

190706A2

CHECK VALVE

Service With Ref 15

1шт.

15

149942C1

SEAL KIT

Not Shown

1шт.

16

87035062

PLUG,Hex, 1/2"-20 ORB

Incl Ref 17

1шт.

17

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

18

125829A1

PRESSURE SWITCH

Parking Brake

1шт.
