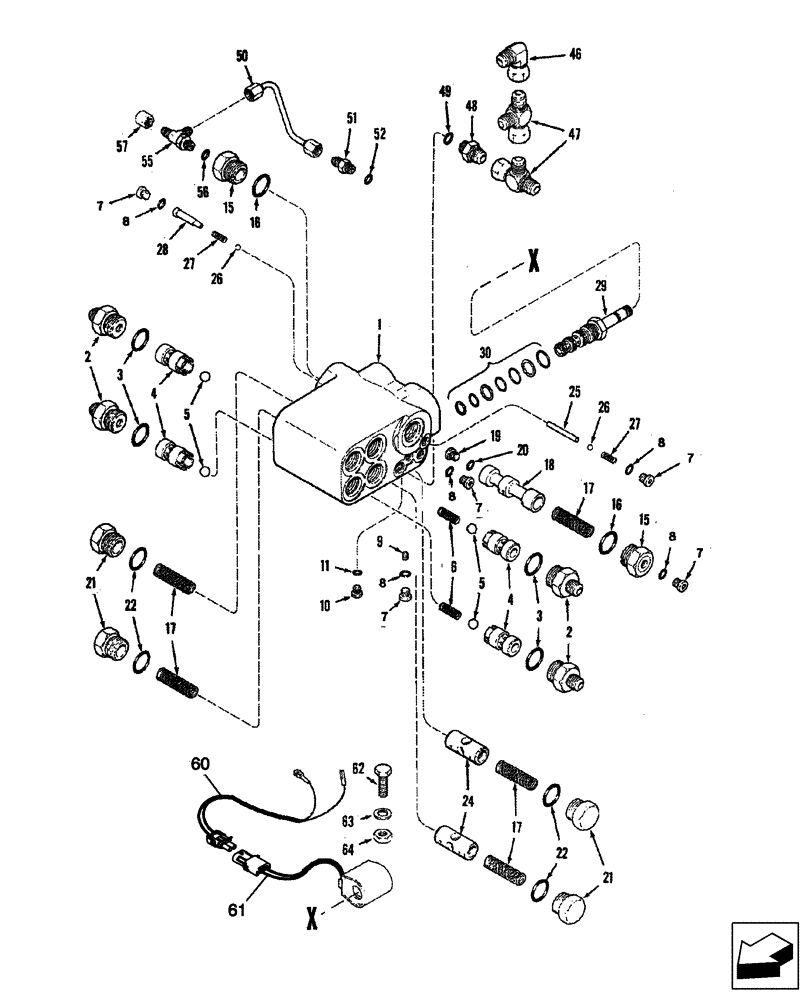

Запчасти Case IH 2588 (35.200.09) - VALVE, SELECTOR CONTROL - POWER GUIDE AXLE - RICE COMBINE (35) - HYDRAULIC SYSTEMS

1347194C1

VALVE

Selector, Rear Wheel Assist, Incl Refs 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, Order P/N 1347194C1

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Incl Ref 3

4шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT, Check Ball

4шт.

5

NSS

NOT SOLD SEPARAT

BALL, 9/16" Dia, Check

4шт.

6

NSS

NOT SOLD SEPARAT

SPRING, Check, Reverse

2шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 8

6шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

ORIFICE

1шт.

10

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

Incl Ref 11

1шт.

11

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

15

1970176C1

PLUG

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

17

NSS

NOT SOLD SEPARAT

SPRING, Flow Divider and Selector Spool

5шт.

18

NSS

NOT SOLD SEPARAT

SPOOL, Selector

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

1979118C1

PLUG

4шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

24

NSS

NOT SOLD SEPARAT

SPOOL

2шт.

25

NSS

NOT SOLD SEPARAT

PIN, Dowel

1шт.

26

211-1010

BALL,5/16" OD

CRS, Flow Divider

2шт.

27

NSS

NOT SOLD SEPARAT

SPRING, Shuttle, Low Priority

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER

1шт.

26

211-1010

BALL,5/16" OD

24, CRS

2шт.

27

NSS

NOT SOLD SEPARAT

SPRING, Shuttle, Low Priority

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER

1шт.

29

187849C1

SOLENOID VALVE

4-Way, Cartridge Only, Incl Ref 30

1шт.

30

187850C1

SEAL KIT

1шт.

46

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

47

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

2шт.

48

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl Ref 49

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

50

1970140C1

TUBE,4.78 mm ID

Charge Pressure

1шт.

51

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl Ref 52

1шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

55

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl Ref 56

1шт.

56

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

57

218-752

CAP,37 Degree, 7/16"-20

1шт.

60

87306083

CABLE

Power Guide Axle

1шт.

61

1340843C1

SOLENOID,12V

12V, Two Wire

1шт.

62

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

63

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.
