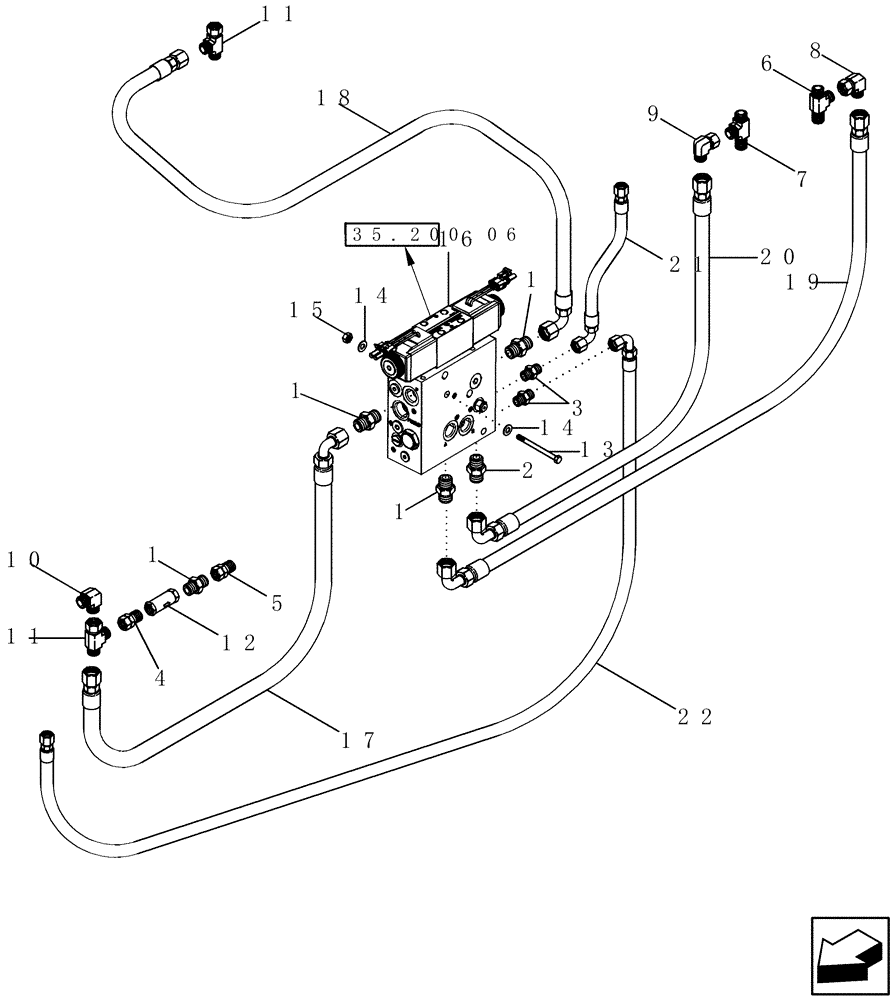

Запчасти Case IH 2588 (35.200.05) - HYDRAULICS - AUTO GUIDANCE - ASN HAJ303001 (35) - HYDRAULIC SYSTEMS

1

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

4шт.

2

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

3

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

2шт.

4

86974819

FITTING,3/4"-16 x 13/16"-16 ORFS

1шт.

5

201-138

REDUCER,11/16"-18 Male x 13/16"-16 Fem, ORFS

1шт.

6

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

1шт.

7

701-449

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

8

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

9

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

10

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

11

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

2шт.

12

87590181

SWITCH

Flow

1шт.

13

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

15

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

16

87590231

VALVE

1шт.

17

87573782

HOSE ASSY.

Pressure

1шт.

18

87573783

HOSE ASSY.

Tank

1шт.

19

87573784

HOSE ASSY.

A Left

1шт.

20

87573785

HOSE ASSY.

B Right

1шт.

21

87573786

HOSE ASSY.

LS1

1шт.

22

87573787

HOSE ASSY.

LS2

1шт.
