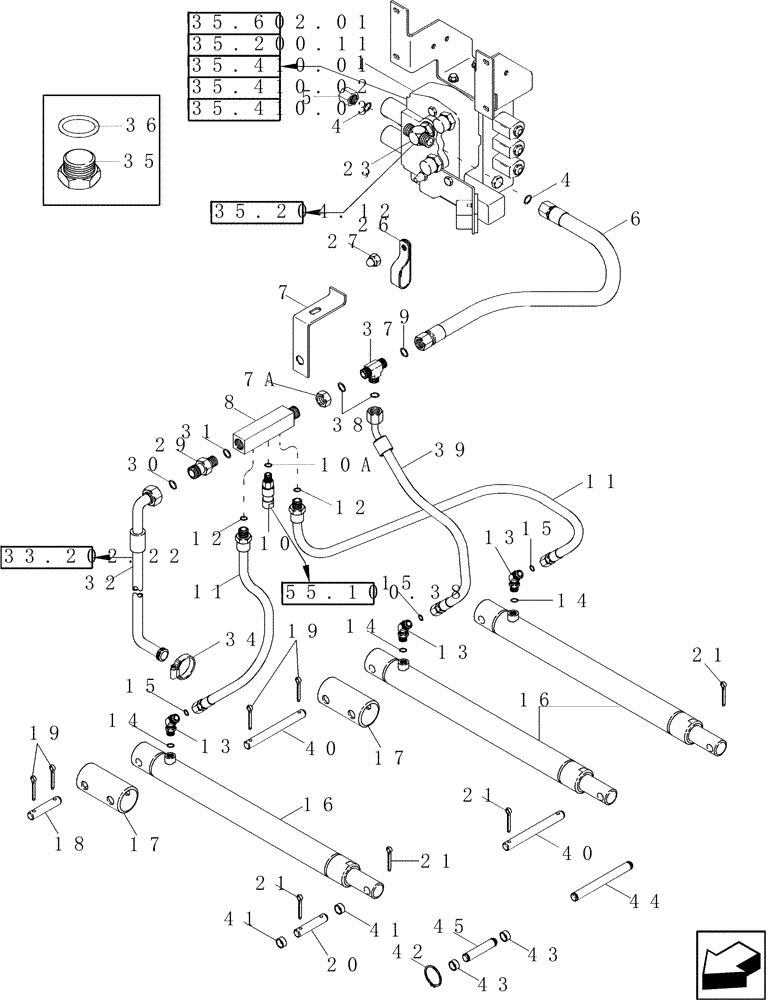

Запчасти Case IH 2588 (35.162.01) - HYDRAULICS - HEADER LIFT (35) - HYDRAULIC SYSTEMS

1

124565A3

VALVE, CONTROL

Header Lift

1шт.

2

201-403

TEE,1"-14 x 7/8"-14 Br, ORFS

Incl Refs 3, 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

201-906

CAP,1"-14 ORFS

1шт.

Without Accumulator

1шт.

6

128024A2

HOSE,15.88mm ID x 2160mm L

2160 mm (85-1/8"), Header Lift Supply

1шт.

7

136489A1

SUPPORT

Manifold Bulkhead Fitting

1шт.

7a

201-919

BHD LOCK NUT,1" - 14

1шт.

8

249910A1

MANIFOLD

Incl Ref 9, Feeder Lift Valve Cylinders, Thermal Relief

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

86975430

SENSOR

Incl Ref 10A, Header Float Pressure, For Attaching Parts

1шт.

10a

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

11

128027A1

HOSE,12.7mm x 1070mm L, 13/16" - 16 ORFS Female Swivel Straight, 3/4" - 16 ORB Male Fixed Straight

1070 mm (42-1/8"), Manifold To Header Lift Cylinders, Incl Ref 12

2шт.

12

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

13

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl Refs 14, 15

2шт.

Without Power Guide Axle

1шт.

13a

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl Refs 14, 15 (Not Shown)

2шт.

With Rock Trap

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

87385882

CYLINDER ASSY.,63mm Rod, 582.5mm Stroke

Incl Ref 16A, Header Lift, Part Number Stamped on Cylinder

2-3шт.

16

87385882R

REMAN-HYD CYLINDER

2588 ASN HAJ300001

2-3шт.

16

87385882C

CORE-HYD CYLINDER

Return Number

2-3шт.

16a

87552535

SEAL KIT

Not Shown

1шт.

17

124059A2

TUBE SPACER

Extension, Lift Cylinder

2-3шт.

With Rock Trap

1шт.

With 54-1/2" Feeder

1шт.

18

242303A1

PIN

1-1/4" x 6-1/2", Extension Tube To Cylinder, Serial Range: -HAJ303001

2шт.

19

432-1632

COTTER PIN,1/4" x 2"

2-4шт.

20

242303A1

PIN

1-1/4" x 6-1/2", Header Lift Cylinder Mounting, Serial Range: -HAJ303001

4шт.

21

432-1632

COTTER PIN,1/4" x 2"

, Serial Range: -HAJ303001

4-8шт.

26

470375C1

CLAMP,1", Insul, 3/8" Bolt

Double, Purchase Locally

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

29

252300A2

VALVE

Thermal Relief, Serial Range: -HAJ301381

1шт.

29

252300A3

VALVE

Thermal Relief, Start Serial: HAJ301381

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Thermal Relief Valve

1шт.

32

254734A1

FLEXIBLE HOSE

860 mm (33-7/8"), Thermal Relief Valve Drain

1шт.

34

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

1шт.

35

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Incl Ref 36, Feeder Lift Without Float

1шт.

36

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

37

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

Incl Ref 38, 12 Row Ready

1шт.

38

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

39

128028A1

FLEXIBLE HOSE,12.7mm ID x 1140mm L

1140 mm (44-7/8"), 12 Row Ready

1шт.

40

403002A1

PIN

1-1/4" x 10-1/4", 12 Row Ready, Serial Range: -HAJ303001

2-3шт.

41

87351138

SPACER,38.35mm ID x 44.45mm OD x 17mm L

Lift Cylinder Pin

2шт.

42

103-16125

SNAP RING,#125, Ext

, Start Serial: HAJ303001

8-12шт.

43

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

, Start Serial: HAJ303001

8-12шт.

44

87617973

PIN,31.75mm OD x 288mm L

Feeder Lift, LH Long, Start Serial: HAJ303001

2-4шт.

45

87617974

PIN,31.75mm OD x 172mm L

Feeder Lift, Start Serial: HAJ303001

2шт.
