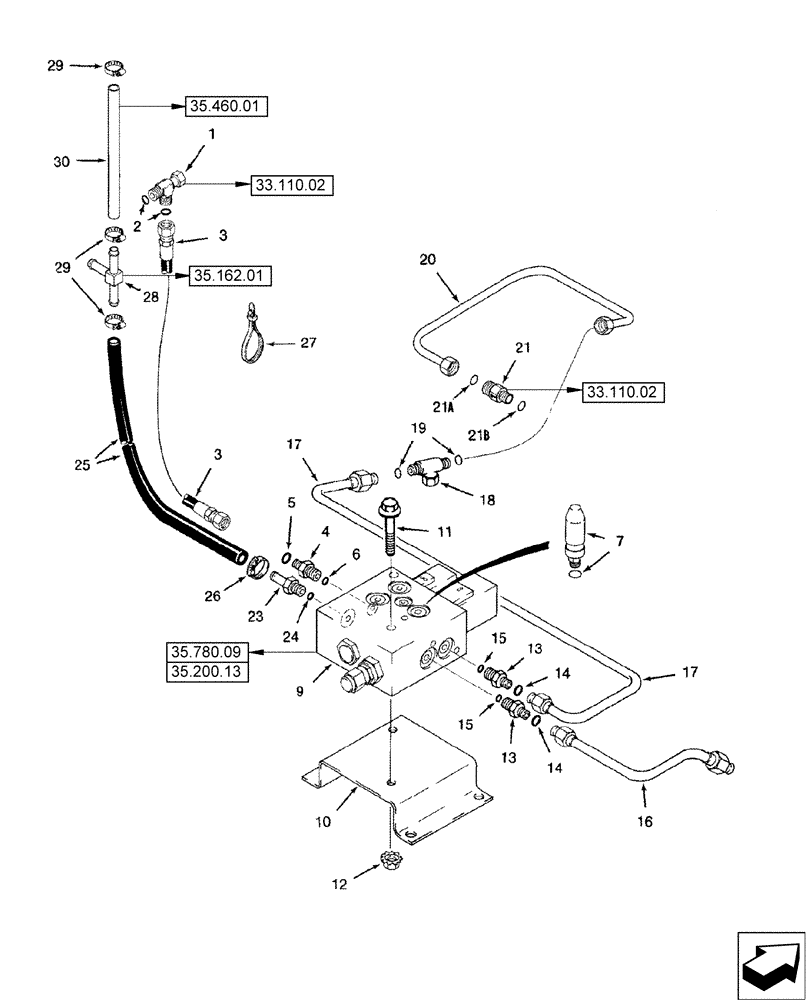

Запчасти Case IH 2588 (33.202.22) - HYDRAULICS - BRAKE, PARKING AND TOW VALVE (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
1
201-416
TEE,13/16"-16 ORFS x 13/16"-16 Sw Run
1шт.
3
128039A2
FLEXIBLE HOSE
2330 mm (91-3/4"), Valve Supply
1шт.
4
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl Refs 5, 6
1шт.
5
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
6
238-6006
O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro
1шт.
7
125829A1
PRESSURE SWITCH
Parking Brake, Incl P/N 237-6005 O-Ring
1шт.
9
129010A4
CONTROL VALVE
Parking Brake and Feeder Clutch
1шт.
10
128293A1
SUPPORT
1шт.
11
845-8070
BOLT,Hvy Hex, M8 x 70mm, Cl 8.8
2шт.
12
825-5148
SERRATED NUT,M8, Flg Ser
2шт.
13
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl Refs 14, 15
2шт.
14
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
16
177158A2
TUBE
Parking Brake, RH
1шт.
17
177159A2
TUBE
Parking Brake, LH
1шт.
18
201-434
TEE,11/16"-18 ORFS x 11/16"-18 Sw Br
Incl Ref 19
2шт.
19
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
20
277962A1
TUBE
1шт.
21a
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
21b
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
23
217-386
FITTING,3/8" Hose Barb x 3/4" - 18 Male ORB
Incl Ref 24
1шт.
24
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
25
128078A2
HYDRAULIC HOSE,9.52 mm ID x 1090.00 mm
Cut from S118400X, Brake Valve Return
1шт.
26
214-1704
HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm
1шт.
27
435437A1
CABLE TIE,3/16" x 7 1/4"
CABLE STRAP
1шт.
28
123949A1
TEE
3/8" Stem, Park Brake to Header Lift and Reel Drive
1шт.
29
214-1706
HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm
4шт.
30
254733A1
HOSE,0.38" ID x 30.00"
Cut From P/N S118400X, Tee to Reel Drive Valve Return
1шт.
