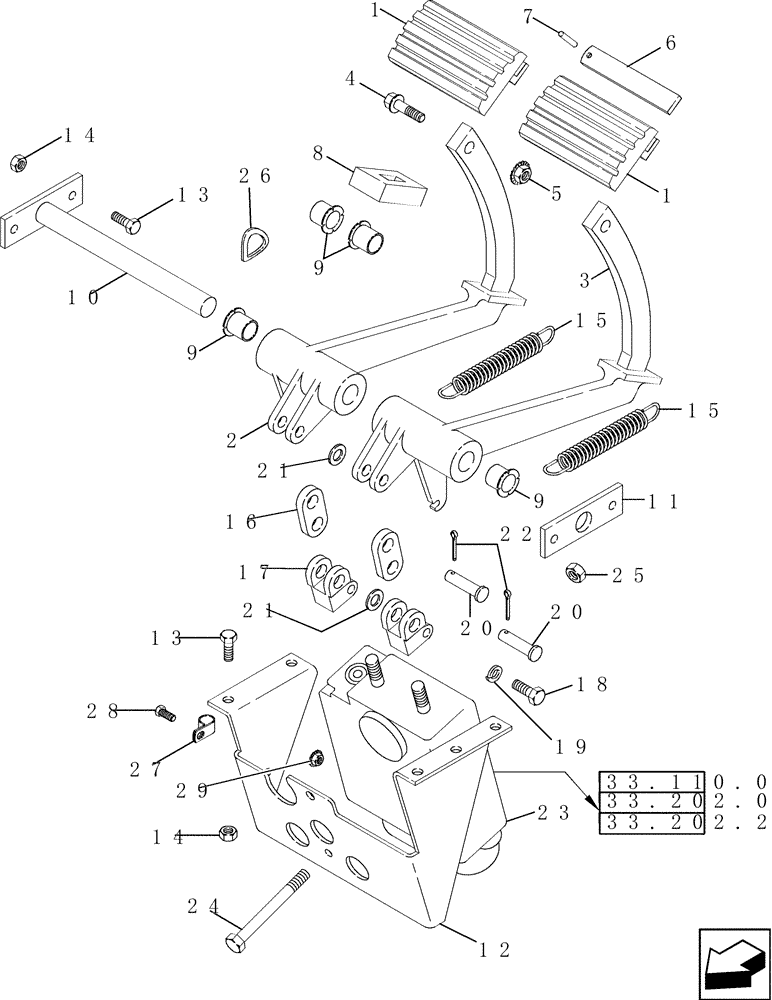

Запчасти Case IH 2588 (33.202.08) - BRAKES - MASTER CONTROLS (33) - BRAKES & CONTROLS

1

119902A1

PAD

Brake Pedal

2шт.

2

138017A4

PEDAL

Brake, LH

1шт.

3

138016A4

PEDAL

Brake, RH

1шт.

4

905-10035

BOLT,Hex Flg, M10 x 35mm

2шт.

5

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

6

119903A1

PLATE

Brake Locking

1шт.

7

38-3814

PIN,1/8" x 7/8", Coiled

1шт.

8

120159A1

FOAM INSULATION

2шт.

9

185062R1

BUSHING

4шт.

10

120160A2

SHAFT

1шт.

11

1281794C1

PLATE

1шт.

12

121496A3

SUPPORT

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

15

182652A1

SPRING

27.9 OD x 122 mm

2шт.

16

384082R1

LINK

2шт.

17

384083R2

YOKE

2шт.

18

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

19

492-11031

LOCK WASHER,5/16"

2шт.

20

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

4шт.

21

495-11053

WASHER,1/2", SAE

4шт.

22

432-816

COTTER PIN,1/8" x 1"

4шт.

23

137449A2

BRAKE VALVE

Master Control

1шт.

24

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

25

425-166

NUT,3/8"-16, G5, Hvy

2шт.

26

G49413

WASHER

1шт.

27

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.
