Запчасти Case IH 2588 (29.212.15[01]) - HYDROSTATIC MOTOR ASSY - SINGLE SPEED (29) - HYDROSTATIC DRIVE

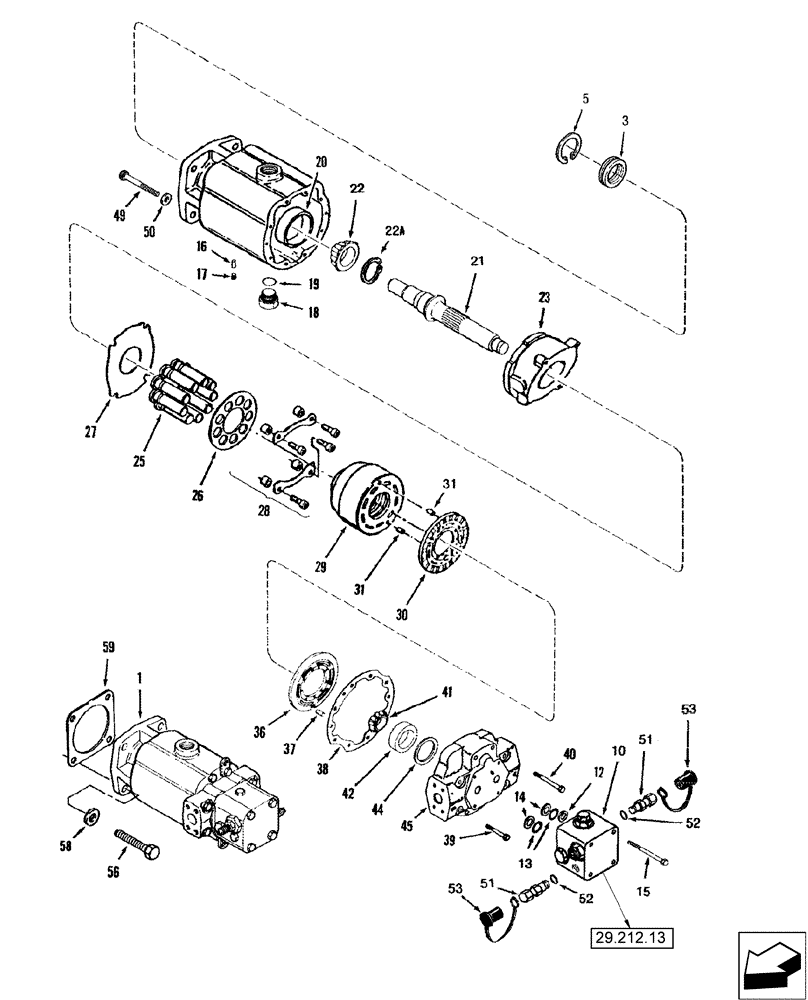

Схема запчастей Case IH 2588 - (29.212.15[01]) - HYDROSTATIC MOTOR ASSY - SINGLE SPEED (29) - HYDROSTATIC DRIVE
22
31
41
26
12
20
42
49
29.212.13
23
25
45
58
53
52
27
50
38
10
1
29
51
39
37
31
36
52
44
51
5
30
13
40
21
53
56
3
28
14
59
17
16
18
19
22a
15

Артикул

Название

Примечание

Количество

1

400475A2

HYDROSTATIC MOTOR,89.13CC

Incl Refs 2 - 53, Part Number Stamped On Part

1шт.

1

400475A2R

REMAN-HYD MOTOR

Reman For New PN 400475A2

1шт.

1

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

403145A1

SEAL

Shaft, Incl Refs 3, 5

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

100-21250

SNAP RING,2.50", Int, #250

1шт.

10

193646A2

BLOCK

Relief Valve

1шт.

140747C92

SEAL KIT

Valve Block, Incl Refs 12 - 14

1шт.

12

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

631458C1

RING

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

37-1516

DOWEL,5/16" x 1"

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl Ref 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

21

403147A1

SHAFT

Incl Refs 22, 22A

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING, CONE

1шт.

22a

NSS

NOT SOLD SEPARAT

RING, No. 200, Retaining

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE

1шт.

28

NSS

NOT SOLD SEPARAT

KIT

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE

1шт.

31

37-1510

DOWEL,5/16" x 5/8"

2шт.

36

NSS

NOT SOLD SEPARAT

PLATE, Valve

1шт.

37

37-1510

DOWEL,5/16" x 5/8"

3шт.

38

1980140C1

GASKET,0.38mm Thk

1шт.

39

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

40

326-748

BOLT,Hex, 7/16" - 14 x 3", Gr 8

6шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1-3/16" ID

1шт.

42

530741R1

BEARING CUP

2-17/32" OD

1шт.

142398C91

SHIM KIT

Incl Ref 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.003"

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.005"

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.010"

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.015"

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.020"

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM, 0.030"

1шт.

45

NSS

NOT SOLD SEPARAT

COVER

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

2шт.

51

R55912

NIPPLE

2шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

53

H434163

DUST CAP

2шт.

56

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

58

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

59

166506C1

GASKET,0.81mm Thk

1шт.

Выбрано товаров: 51
