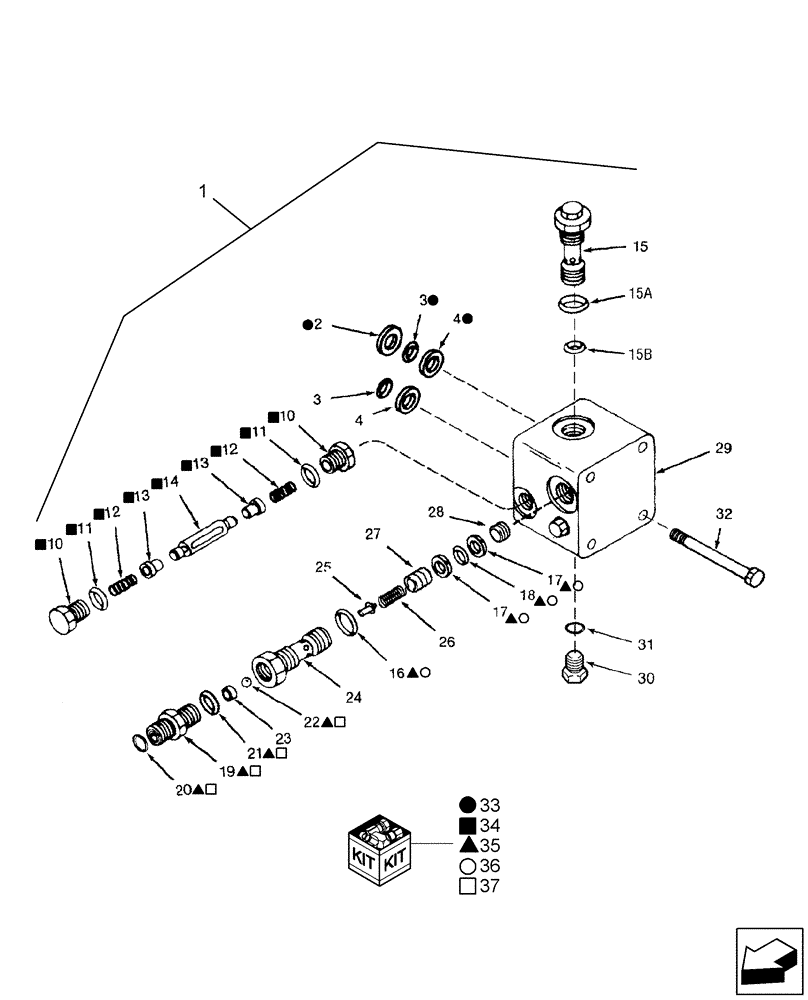

Запчасти Case IH 2588 (29.212.13) - HYDROSTATIC MOTOR ASSY - RELIEF VALVE BLOCK (29) - HYDROSTATIC DRIVE

1

193646A2

BLOCK

Relief Valve, Incl Refs 2 - 31

1шт.

2

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

631458C1

RING

2шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl Ref 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

12

145560C1

SPRING

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE, Regulator, Shuttle

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

15

140761C1

VALVE PRESSURE RELIE

Incl Refs 15A, 15B

1шт.

15a

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15b

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

BACK-UP RING

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

19

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

211-1008

BALL,1/4" Dia

24, CRS

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING, Ball Guide

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

25

NSS

NOT SOLD SEPARAT

ORIFICE

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG

1шт.

29

NSS

NOT SOLD SEPARAT

BLOCK

1шт.

30

9672438

PLUG,7/16" - 20 ORB

Incl Ref 1

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

32

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

33

140747C92

SEAL KIT

Valve Block, Incl Refs 2 - 4

1шт.

34

145559C91

KIT

Shuttle Valve, Incl Refs 10 - 14

1шт.

35

193647A1

VALVE PRESSURE RELIE

Kit, Incl P/N 393885R92, P/N 222167A1, Refs 16 - 22, 24

2шт.

36

393885R92

SEAL KIT

Relief Valve, Incl Refs 16 - 18

3шт.

37

222167A1

REPAIR KIT

Check Valve, Incl Refs 19 - 22

1шт.
