Запчасти Case IH 2588 (29.212.06[01]) - CHARGE PUMP ASSY - HYDROSTATIC PUMP - CORN AND GRAIN COMBINE (29) - HYDROSTATIC DRIVE

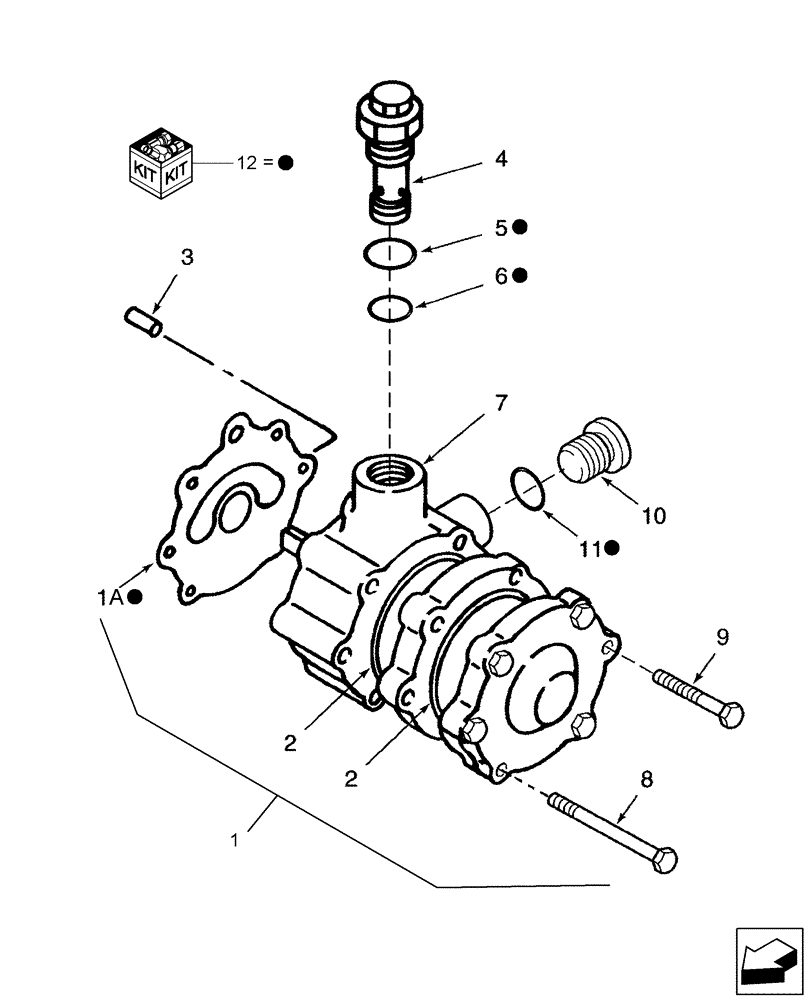

Схема запчастей Case IH 2588 - (29.212.06[01]) - CHARGE PUMP ASSY - HYDROSTATIC PUMP - CORN AND GRAIN COMBINE (29) - HYDROSTATIC DRIVE
2
3
6
12
1a
11
9
2
8
5
7
1
4
10

Артикул

Название

Примечание

Количество

1

92740C2

PUMP

Charge, Incl Refs 1 - 9

1шт.

1a

133760C2

GASKET

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

2шт.

3

37-1510

DOWEL,5/16" x 5/8"

2шт.

4

140771C1

VALVE

Incl Refs 5 - 6, Low Pressure

1шт.

5

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

6

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

BODY

1шт.

8

326-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

4шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

10

86512512

PLUG,7/8" - 14 ORB

Incl Ref 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

255081A1

SEAL KIT

Charge Pump, Incl Refs 1, 5, 6, 11

1шт.

Выбрано товаров: 13
