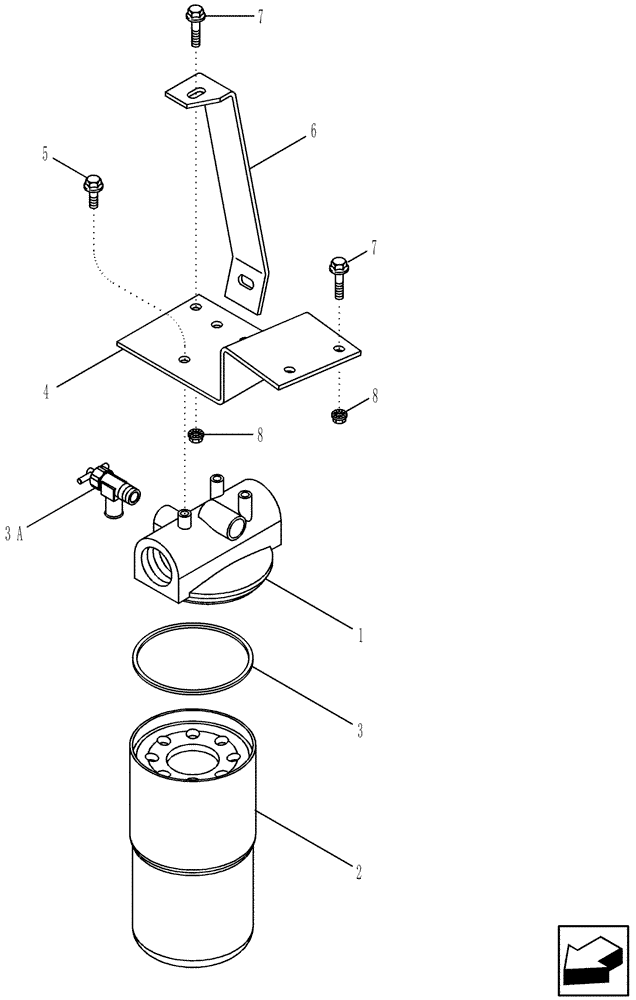

Запчасти Case IH 2588 (29.204.04) - HYDROSTATIC - FILTER, PUMP SUCTION - SUCTION FILTER MOUNTING (29) - HYDROSTATIC DRIVE

87784C92

HYDRAULIC OIL FILTER

Incl Refs 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD, Order P/N 87784C92

1шт.

2

A177605

HYDRAULIC OIL FILTER

Order Kit P/N 1329214C1

1шт.

Both Elements Must Be Changed At The Same Time

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

Order Kit P/N 1329214C1

1шт.

3a

301803R1

SHUT-OFF VALVE

1шт.

4

444454A1

BRACKET

1шт.

5

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

4шт.

6

444455A1

STRAP

1шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

1329214C1

HYDRAULIC OIL FILTER

Incl Two Elements and Four Seals

1шт.

Both Elements Must Be Changed At The Same Time

1шт.
