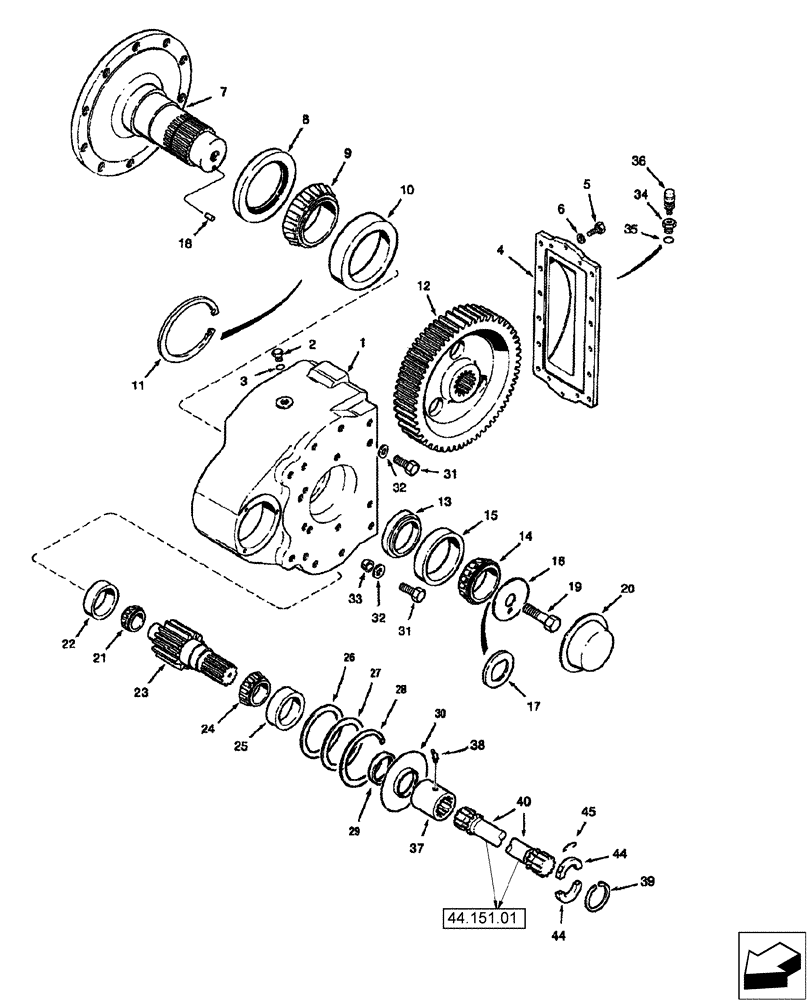

Запчасти Case IH 2588 (25.310.01) - FINAL DRIVE ASSY (25) - FRONT AXLE SYSTEM

87392269

DRIVE AXLE

Final, Heavy Duty, Incl Refs 1 - 6, 7A, 8, 9A, 10 - 30

2шт.

87392269R

REMAN-AXLE

Reman for New P/N 87392269

2шт.

87392269C

CORE-TRANSMISSION

Return Part Number

2шт.

87392267R

REMAN-TRANSMISSION

Final Drive

2шт.

87392267C

CORE-TRANSMISSION

Return Part Number

2шт.

1

135285A2

HOUSING

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl Ref 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

135286A1

COVER

1шт.

5

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

14шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

14шт.

7

87338661

HUB

Output

1шт.

8

135293A1

OIL SEAL,158.75mm ID x 197mm OD x 12.7mm Thk

1шт.

9

335947A1

ROLLER BEARING,133.35mm ID x 46.04mm W

1шт.

10

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

1шт.

11

135297A1

CIRCLIP

1шт.

12

87354349

GEAR

73 T, Final Drive

1шт.

13

135307A1

SPACER

1шт.

14

135294A1

THRUST BEARING,71.44mm ID x 41.19mm W

1шт.

15

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

1шт.

16

135289A1

RETAINER

1шт.

17

135299A1

SHIM,0.051mm Thk

(0.002")

1шт.

17

135300A1

SHIM,0.457mm Thk

(0.018")

1шт.

17

135301A1

SHIM,0.635mm Thk

(0.025")

1шт.

18

37-1512

DOWEL,5/16" x 3/4"

1шт.

19

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

1шт.

20

135296A1

BEARING COVER

1шт.

21

135295A1

ROLLER BEARING,44.46mm ID x 35.98mm W

1шт.

22

135650A1

BEARING CUP,101.6mm OD x 26.99mm W

1шт.

23

87354348

SHAFT

12 T, Input

1шт.

24

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

1шт.

25

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

1шт.

26

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

(0.002")

1шт.

26

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

(0.018")

1шт.

26

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

(0.025")

1шт.

27

193652A1

WASHER

1шт.

28

101-21412

SNAP RING,#412, 4.430", Int

1шт.

29

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

1шт.

30

135291A1

GUARD

1шт.

31

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

26шт.

32

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3.4 mm

26шт.

33

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

1шт.

34

135950A1

ADAPTER

Incl Ref 35

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

2шт.

37

248600A1

COUPLING

Incl Ref 38

4шт.

38

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

39

123763A1

SNAP RING

4шт.

40

242846A1

SHAFT

748 mm

2шт.

Models Without Axle Extensions

1шт.

40

242852A1

SHAFT

904 mm, Used With P/N 242462A1 and P/N 370220A1 Extensions

2шт.

40

242859A1

SHAFT

1046 mm, Used With P/N 240851A1 Extension

2шт.

40

356460A1

SHAFT

1092 mm, Used With P/N 356418A1 Extension

2шт.

44

244549A1

COLLAR

Incl Ref 44A Two Piece Collar Shaft

2шт.

44a

62-33116

HEX SOC SCREW,5/16" - 24 x 1"

Not Shown

1шт.

45

245105A2

CLIP

4шт.
