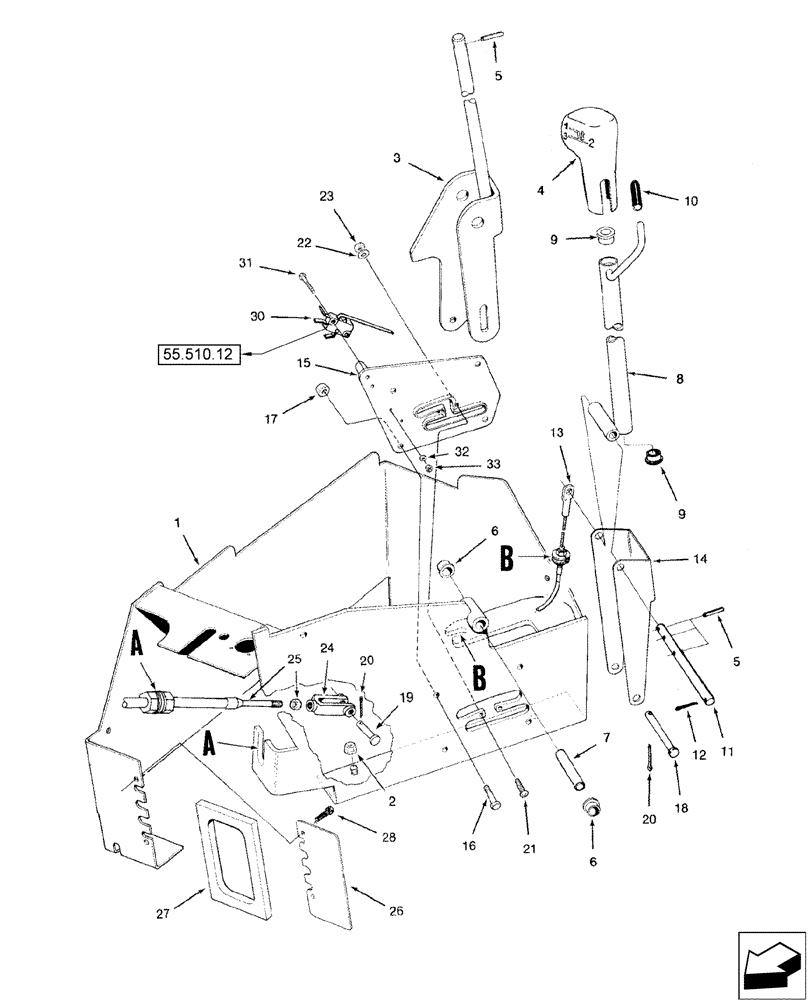

Запчасти Case IH 2588 (21.130.01) - CONTROLS - TRANSMISSION UPPER SHIFT (21) - TRANSMISSION

1

87597486

BRACKET

1шт.

2

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

3

122751A3

LEVER

Transmission Shift, 2nd and 3rd Speed

1шт.

4

122205A3

HANDLE

1шт.

5

838-1428

LOCK PIN,M4 x 28, Slotted

4шт.

6

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

2шт.

7

122199A1

PIVOT PIN,12.7mm OD x 73mm L

1шт.

8

197971A2

TUBE,15.9 mm ID

Transmission Shift, 1st Speed, Incl Ref 9

1шт.

9

90-4368T1

BUSHING,15.95mm ID x 19.13mm OD x 7.92mm L

2шт.

10

125803A1

SLEEVE

1шт.

11

122197A2

SPLIT PIN/SAFETY PIN

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

3шт.

13

115398A1

CABLE,3209mm L

3209 mm (126"), Transmission Shift, 1st Speed

1шт.

14

124714A2

SUPPORT

1шт.

15

122757A3

GUIDE

1шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

17

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

18

427-6325

CLEVIS PIN,3/8" x 3 1/4"

1шт.

19

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

2шт.

21

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

2шт.

22

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

23

824-1404

NUT,M4, Cl 5

2шт.

24

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

25

115397A1

CABLE,3571mm L

Transmission Shift, 2nd and 3rd Speed

1шт.

26

122750A1

PLATE

1шт.

27

122758A1

GASKET

No Longer Used

1шт.

28

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

30

60-6515T1

SWITCH

Third Gear Lockout

1шт.

31

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

2шт.

32

495-31022

WASHER,#10

2шт.

33

225-14104

NUT,#4-40

2шт.
