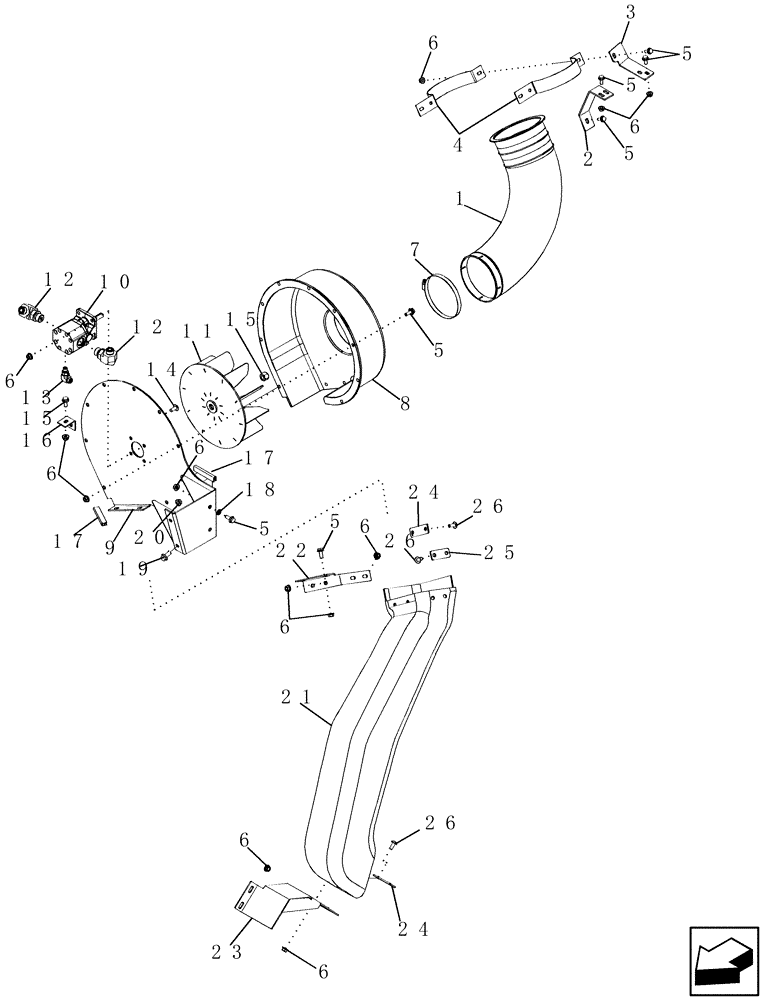

Запчасти Case IH 2588 (10.418.26) - ROTARY AIR SCREEN VACUUM SYSTEM (10) - ENGINE

1

87378425

DUCT

Outlet

1шт.

2

87358709

BRACKET

Outlet Duct

1шт.

3

87358707

BRACKET

Outlet Duct

1шт.

4

87385912

CLAMP

Outlet Duct

2шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

21шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

33шт.

7

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

Outlet Duct

1шт.

8

87479342

HOUSING

Vacuum Fan

1шт.

9

87385906

BRACKET

1шт.

10

87359661

MOTOR, HYDRAULIC,GEAR, 5.29 CC

Suction Fan, Incl Refs 10A, 10B

1шт.

10a

122067

KEY

Not Shown

1шт.

10b

87341607

SEAL KIT

Kit (Not Shown)

1шт.

11

87385913

FAN

1шт.

12

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

2шт.

13

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

1шт.

14

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

4шт.

15

87366201

NUT

1шт.

16

87357276

ANGLE

Chopper Shield Support

1шт.

17

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

2шт.

18

131-440

PUSH-ON NUT

2шт.

19

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

20

231-5146

FLANGE NUT,3/8"-16

2шт.

21

87527668

DUCT

Vacuum Outlet

1шт.

22

87527701

BRACKET

Upper Vacuum Outlet

1шт.

23

87527700

BRACKET

Lower Vacuum Outlet

1шт.

24

87515447

PLATE

2шт.

25

87515448

PLATE

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

6шт.
