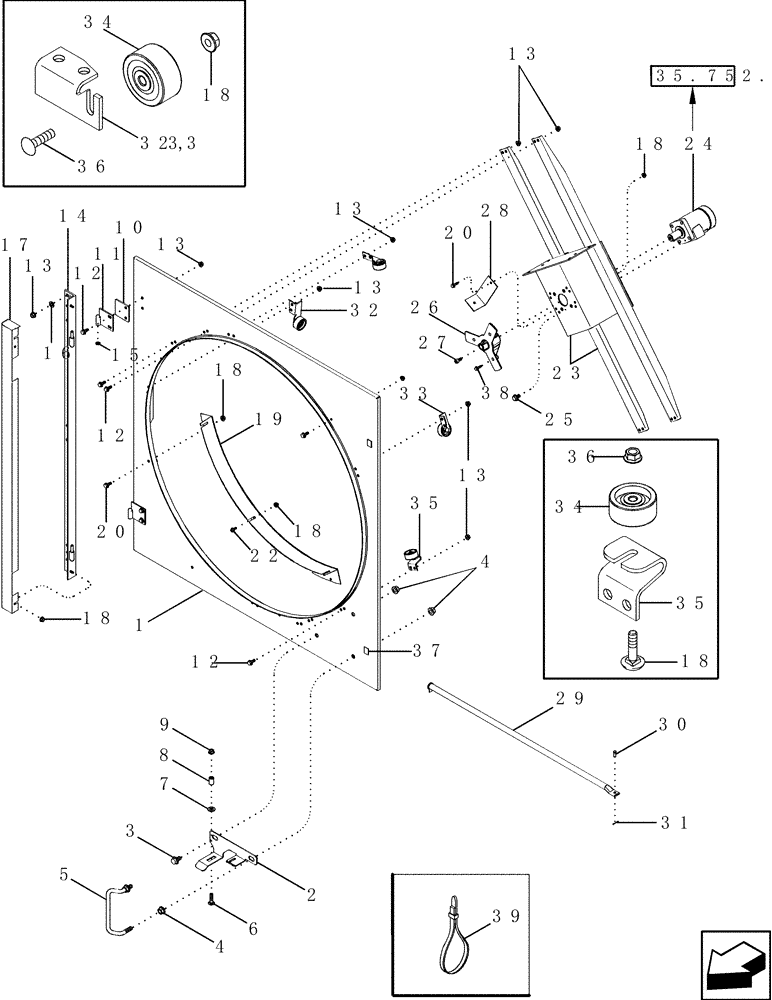

Запчасти Case IH 2577 (10.418.25) - PLASTIC DOOR ASSY - ROTARY AIR SCREEN (10) - ENGINE

1

87430947

DOOR

Cooler Access

1шт.

2

87413881

GUIDE

Door Latch

1шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

5

1329715C1

HANDLE

1шт.

6

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

7

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

1шт.

8

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

9

231-5146

FLANGE NUT,3/8"-16

1шт.

10

87430707

SPACER

Hinge

2шт.

11

87417094

HINGE

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

20шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

14

87425804

HINGE

1шт.

15

86985597

WASHER,8.1mm ID x 13.5mm OD x 2mm Thk

Special

2шт.

16

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

7шт.

17

87425802

COVER

Door Hinge, Shown

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

12шт.

19

87413896

BRACKET

Blockoff Assy

1шт.

20

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

7шт.

21

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

22

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

23

87413830

SUPPORT

1шт.

24

435624A1

HYDRAULIC MOTOR

Rotary Screen, Serial Range: -HAJ301707

1шт.

435624A1R

REMAN-HYD MOTOR

2577 AXIAL-FLOW COMBINE (NA) ASN HAJ0300001, Serial Range: -HAJ301707 (10/06-)

1шт.

435624A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

24

86995688

MOTOR, HYDRAULIC,293CC

Rotary Screen, Start Serial: HAJ301707

1шт.

25

87021006

BOLT,M10 x 26.4mm, Cl 10.9

4шт.

26

412506A1

HUB

1шт.

27

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.

28

87409347

SUPPORT

Inner Baffle

1шт.

29

87413898

SUPPORT

1шт.

30

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

32

87407751

BRACKET

1шт.

33

87407737

BRACKET

2шт.

34

87408568

BALL BEARING,44.45mm OD

Roller

4шт.

35

444034A2

SUPPORT

Roller

1шт.

36

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

4шт.

37

86984222

PAD

2шт.

38

857-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

3шт.

39

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

40

1327979C1

MOLDING

Trim, Cut 152 mm (6") from 196707C1 (Not Shown)

1шт.

41

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

Trim, Cut 76 mm (3") from 196707C1 (Not Shown)

1шт.
