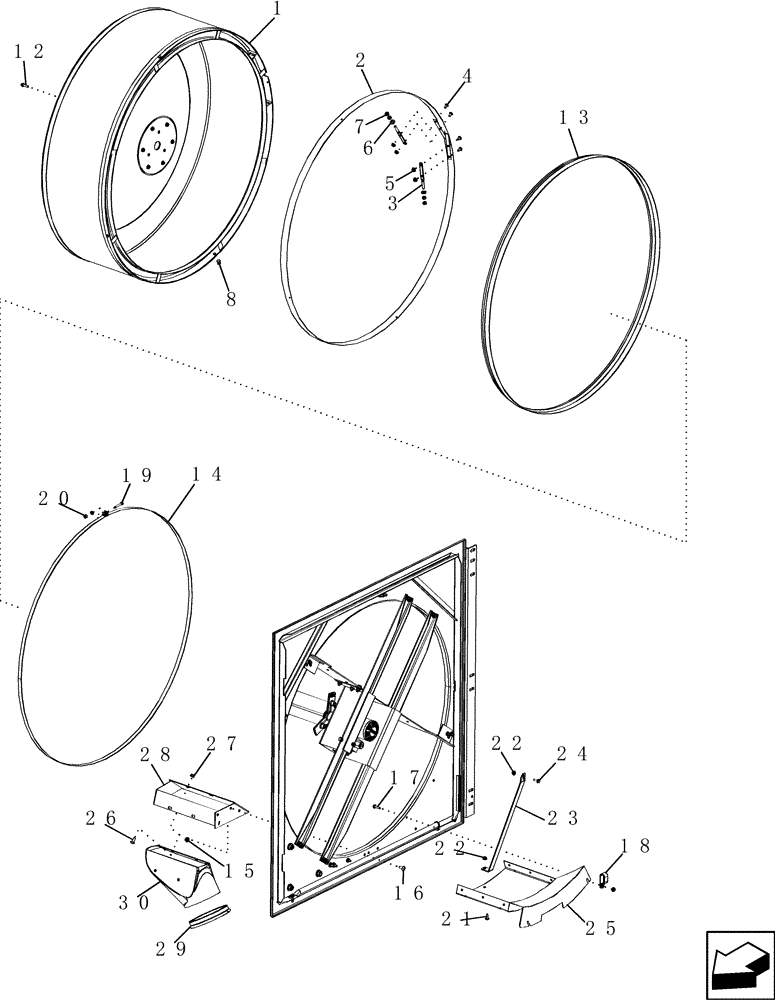

Запчасти Case IH 2577 (10.418.20) - METAL ROTARY AIR SCREEN ASSY (10) - ENGINE

1

87361459

SCREEN

1шт.

2

87417475

BAND

1шт.

3

87413544

BOLT

2шт.

4

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

6

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

7

425-105

NUT,5/16"-18, G5

4шт.

8

390747A1

RIVET

3шт.

9

87331483

DISC

1шт.

10

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

11

425-284

FLANGE NUT,Flg, 1/4"-20.G5

6шт.

12

857-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

3шт.

13

87429394

SEAL,1008.8mm ID x 1012.6mm OD x 44.5mm Thk

1шт.

14

87420689

CLAMP,1060mm

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

16

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

3шт.

17

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

1шт.

18

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

19

113-83

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

1шт.

20

231-1444

NUT,1/4"-20, GB

1шт.

21

450-82512

1шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

23

87385914

STRAP

1шт.

24

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1шт.

25

87351930

BRACKET

1шт.

26

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

28

87385905

BRACKET

1шт.

29

87363448

SEAL,Blockoff, 482mm L

1шт.

30

87378423

NOZZLE

1шт.

31

87302735

REPAIR KIT

Incl Wear Strip, Hardware and Instructions (Not Shown)

1шт.

32

1327979C1

MOLDING

Cut 15 mm (6") from 196707C1 (Not Shown)

1шт.
