Запчасти Case IH 2577 (10.406.10) - OIL FILTER AND COOLER (10) - ENGINE

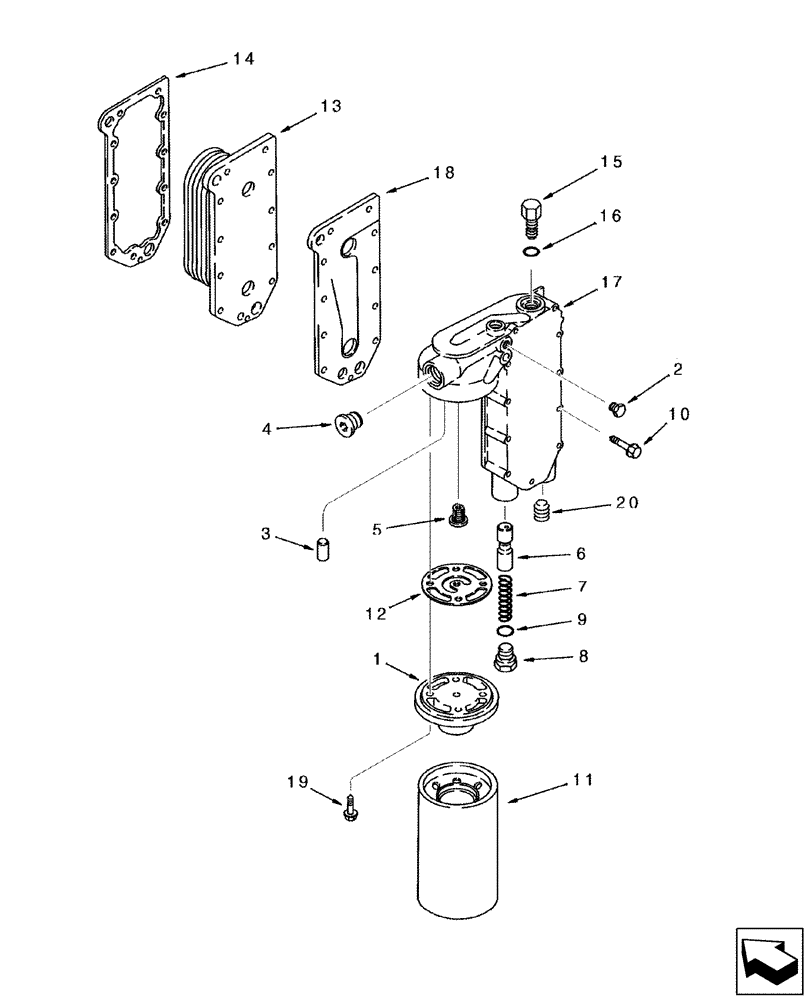

Схема запчастей Case IH 2577 - (10.406.10) - OIL FILTER AND COOLER (10) - ENGINE
1
17
7
14
12
19
11
13
6
16
15
4
20
18
3
8
5
10
2
9

Артикул

Название

Примечание

Количество

1

87340627

FILTER HEAD

1шт.

2

J906619

PLUG,1/8" - 27

1/8" PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

1шт.

4

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

5

J936365

VALVE PRESSURE RELIE

1шт.

6

J945967

PLUNGER

1шт.

7

87340755

SPRING

1шт.

8

J931084

PLUG

24 mm, Incl Ref 9

1шт.

9

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16"

1шт.

10

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65; 10.9

8шт.

10

87409553

BOLT

With Stud, M8

1шт.

11

366700A1

ENGINE OIL FILTER

1шт.

12

87447957

GASKET,1.2mm Thk

1шт.

13

87452245

CORE-OIL COOLER

1шт.

14

J918174

GASKET,0.71mm Thk

1шт.

15

J934410

BY-PASS VALVE

Incl Ref 16

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

1шт.

17

87314031

COVER

1шт.

18

J929011

GASKET,1.19mm Thk

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

1шт.

Выбрано товаров: 21
