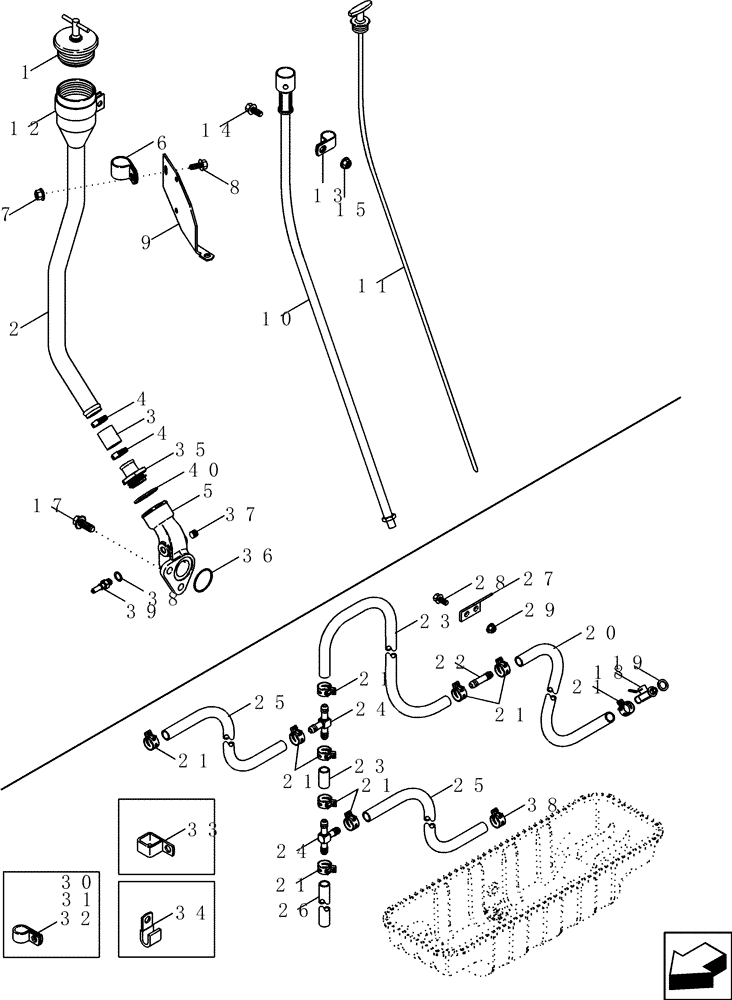

Запчасти Case IH 2577 (10.304.03) - OIL SYSTEM ENGINE - OIL FILL TUBE - OIL DRAIN SYSTEM (10) - ENGINE

1

A77424

FILLER CAP

Cap

1шт.

2

87350882

TUBE

1шт.

3

87350823

HOSE,25.4mm ID x 50.8mm L

1шт.

4

87350865

HOSE CLAMP

1-1/16" - 2

2шт.

5

87341096

HYD CONNECTOR

1шт.

6

87350859

CLAMP,25.4mm ID, 9.53mm Bolt Hole, P Type

1шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

8

J924962

FLANGE BOLT

M8 x 1.25 x 16; 10.9

1шт.

9

87350884

BRACKET

1шт.

10

87350622

TUBE

1шт.

11

87350502

DIPSTICK

1шт.

12

118788A1

CLAMP

1шт.

13

A77508

CLAMP

7/16" ID

1шт.

14

J924962

FLANGE BOLT

M8 x 1.25; 10.9

1шт.

15

J900589

NUT

M8 x 1.25

1шт.

17

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

18

1330429C1

DRAIN VALVE

Incl Ref 20

1шт.

19

J920773

SEALING WASHER

1шт.

20

1329978C3

HOSE

430 mm (17")

1шт.

21

1954736C1

HOSE CLAMP,#24

10шт.

22

1301342C1

FITTING

1шт.

23

1329977C2

HOSE,15.75 mm ID x 840.00 mm

840 mm (33"), Cut From P/N 1977295CX, Oil Drain Upper, Oil Drain Intermediate

2шт.

24

1977169C1

TEE

2шт.

25

394244A1

HOSE

270 mm (10-5/8"), Cut From P/N 1977295CX, Oil Drain PTO

1шт.

26

293339A1

RADIATOR HOSE,22.35mm ID x 1100mm L

Cut From P/N 1977295CX, Oil Drain Lower

1шт.

27

1977212C1

BRACKET

1шт.

28

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

31

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

32

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.

33

1301387C2

CLIP

2" ID Square

2шт.

34

97249C1

CLIP

1шт.

35

87350868

ADAPTER

Reducing

1шт.

36

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

37

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

38

87341228

O-RING,8.9154mm ID x 1.8288mm Width

1шт.

39

87341100

ADAPTER

1шт.

40

87350871

SEALING RING

1шт.
