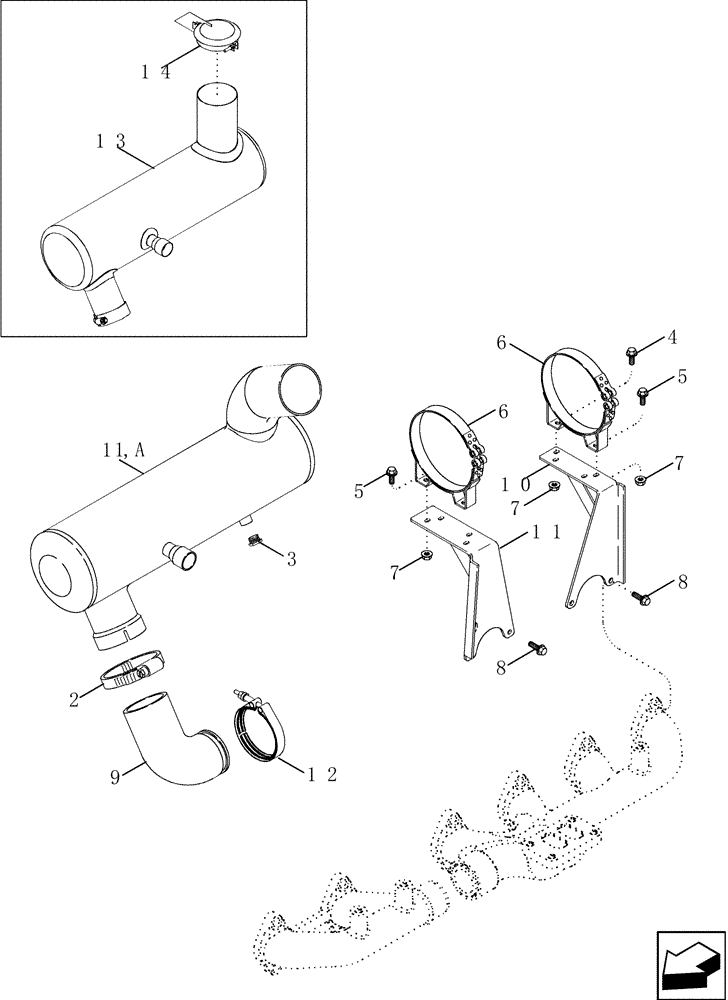

Запчасти Case IH 2577 (10.254.11) - EXHAUST SYSTEM - MUFFLER (10) - ENGINE

1

87301603

MUFFLER,Aspirated

Incl Ref 2, Serial Range: -HAJ301378

1шт.

1

87647561

MUFFLER,Aspirated

Incl Ref 2, Serial Range: HAJ301378-HAJ303001

1шт.

1a

87302273

MUFFLER

Incl Refs 2, 3

1шт.

2

87314920

CLAMP

1шт.

3

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

4

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

6

87301605

CLAMP,228.6mm ID

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

857-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

4шт.

9

87301604

ELBOW

Engine Exhaust

1шт.

10

87310387

BRACKET

Muffler

1шт.

11

87311461

BRACKET

Muffler, Rear

1шт.

12

A170807

CLAMP,102mm ID

1шт.

13

87301603

MUFFLER,Aspirated

Incl Ref 2

1шт.

14

86997809

COVER

Exhaust

1шт.
