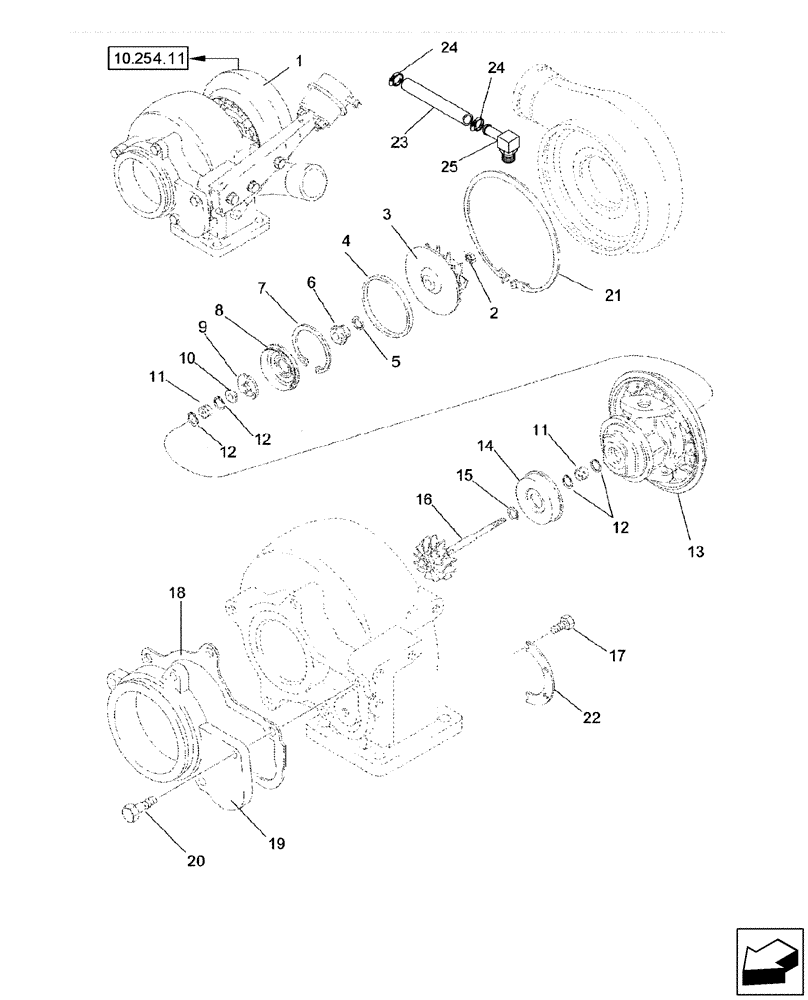

Запчасти Case IH 2577 (10.250.07) - TURBOCHARGER ASSY (10) - ENGINE

87351239

TURBOCHARGER

Turbocharger

1шт.

87351239R

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER

1шт.

87351239C

CORE-TURBOCHARGER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

TURBOCHARGER, Incl Refs 2 - 22; Also Incl Refs 1 - 12

1шт.

87701197

HOUSING

Incl Refs 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER

1шт.

7

NSS

NOT SOLD SEPARAT

RING

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING, THRUST

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, JOURNAL

2шт.

12

NSS

NOT SOLD SEPARAT

RING

4шт.

13

87701196

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT

1шт.

17

J759917

SET SCREW

6шт.

18

J537960

GASKET,0.46mm Thk

1шт.

19

J537979

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Incl Refs 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.

23

87403744

HOSE,6.40 mm ID x 1862.00 mm

1шт.

24

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

25

J528121

ELBOW

1шт.
