Запчасти Case IH 2577 (10.246.03) - FUEL INJECTION - PUMP AND DRIVE (10) - ENGINE

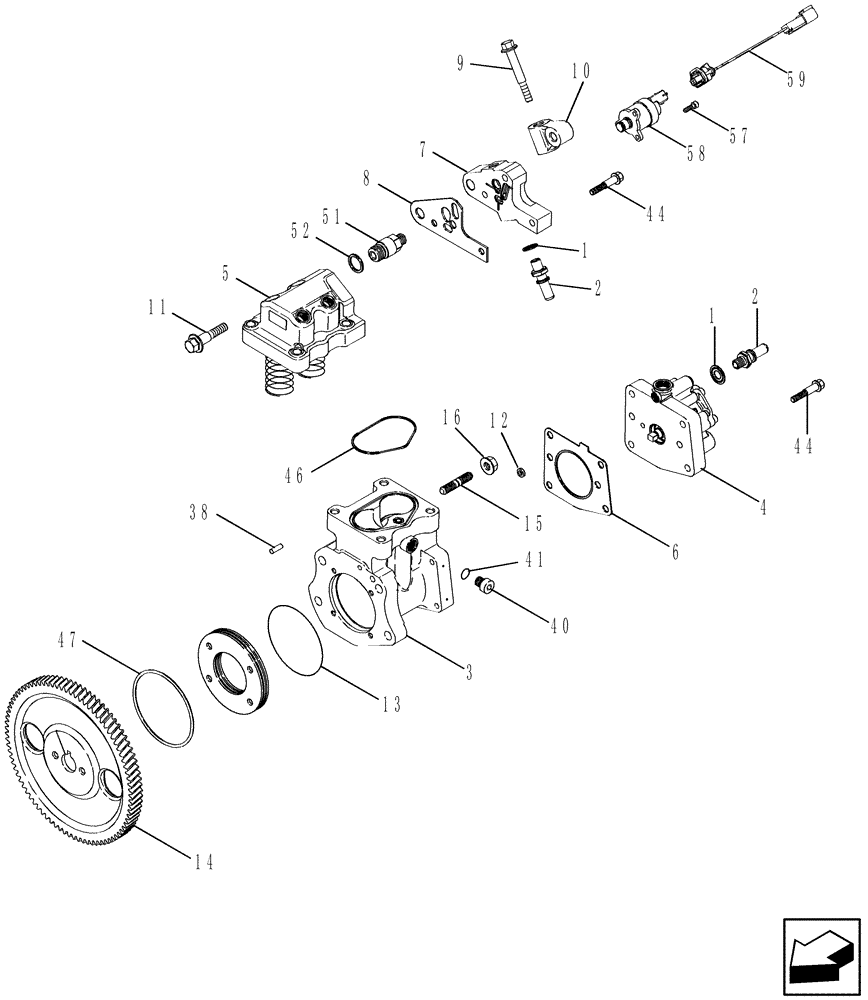

Схема запчастей Case IH 2577 - (10.246.03) - FUEL INJECTION - PUMP AND DRIVE (10) - ENGINE
46
40
44
4
1
5
16
8
6
58
41
12
11
10
7
14
52
15
2
13
9
38
1
3
2
47
51
57
44
59

Артикул

Название

Примечание

Количество

87351412

FUEL PUMP

Complete Assm

1шт.

84493585R

REMAN-INJECTION PUMP

2577 ASN HAJ0300001, Reman For New P/N's 87351412 & 84493585

1шт.

84493585C

CORE-INJECTION PUMP

Return Part Number

1шт.

1

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

3шт.

2

87349484

ADAPTER

3шт.

3

87351467

HOUSING

Fuel Pump

1шт.

4

87351478

HEAD

1шт.

4

87351478R

REMAN-INJECTION PUMP

Reman Fuel Pump Front Half For 2577 ASNHAJ300001

1шт.

4

87351478C

CORE-INJECTION PUMP

Return Part Number For Reman Fule Pump Core

1шт.

5

87684601

HEAD

Fuel Pump

1шт.

5

87684601R

REMAN-FUEL PUMP HEAD

Remanufactured Fuel Pump Head

1шт.

5

87684601C

CORE-FUEL PUMP HEAD

Return Part Number

1шт.

6

87377387

GASKET,1.02mm Thk

Cover Plate

1шт.

7

87351486

ADAPTER

Fuel Pump

1шт.

8

87351493

GASKET

Fuel Pump To Gear Pump

1шт.

9

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

10

87346420

SUPPORT

1шт.

11

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

12

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

13

87351514

SEAL,0.07" Thk x 2.95" ID, 75 Duro

1шт.

14

J942764

GEAR

Fuel Pump

1шт.

15

86991263

STUD,M10 x 1.5 x 55

(2-5/32")

4шт.

16

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

38

J329899

DOWEL,5.01mm OD x 10mm L

1шт.

39

J330252

LOCK WASHER

Not Shown

1шт.

40

J678923

PLUG,M10 x 1

Incl Ref 41

3шт.

41

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

42

J867640

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Shown

1шт.

43

J926593

NUT

M20 x 1.5 (Not Shown)

1шт.

44

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

7шт.

45

87351459

SCREW

Not Shown

4шт.

46

J4010636

SEAL

Pump Body

1шт.

47

238-7241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 7, 75 Duro

1шт.

48

87351521

BOLT

Not Shown

4шт.

49

J867641

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Not Shown

4шт.

50

J867651

SEAL,1.78mm Thk x 29.8mm ID

Not Shown

2шт.

51

87351522

FITTING

High Pressure

1шт.

52

87351523

SEALING WASHER

1шт.

53

87351524

SEALING WASHER

Not Shown

2шт.

54

87351525

PLUG

Not Shown

2шт.

55

87351528

PLUG

Not Shown

2шт.

56

87351531

SEALING WASHER

Not Shown

2шт.

57

87351533

HEX SOC SCREW

3шт.

58

87351534

ACTUATOR

ETR Fuel

1шт.

58

87351534R

REMAN-SOLENOID

Reman Actuator For 2577 ASN HAJ300001

1шт.

58

87351534C

CORE-SOLENOID

Return Part Number For Reman Actuator Core

1шт.

59

87351534

ACTUATOR

Harness, Wire

1шт.

60

87351536

ADAPTER

Fuel Pump (Not Shown)

1шт.

60

87351536R

REMAN-INJECTION PUMP

2577 ASN HAJ0300001

1шт.

60

87351536C

CORE-INJECTION PUMP

Return Part Number

1шт.

61

87351504

HUB

Distributor Drive (Not Shown)

1шт.

Выбрано товаров: 51
