Запчасти Case IH 2577 (10.214.07) - FUEL, SUPPLY (10) - ENGINE

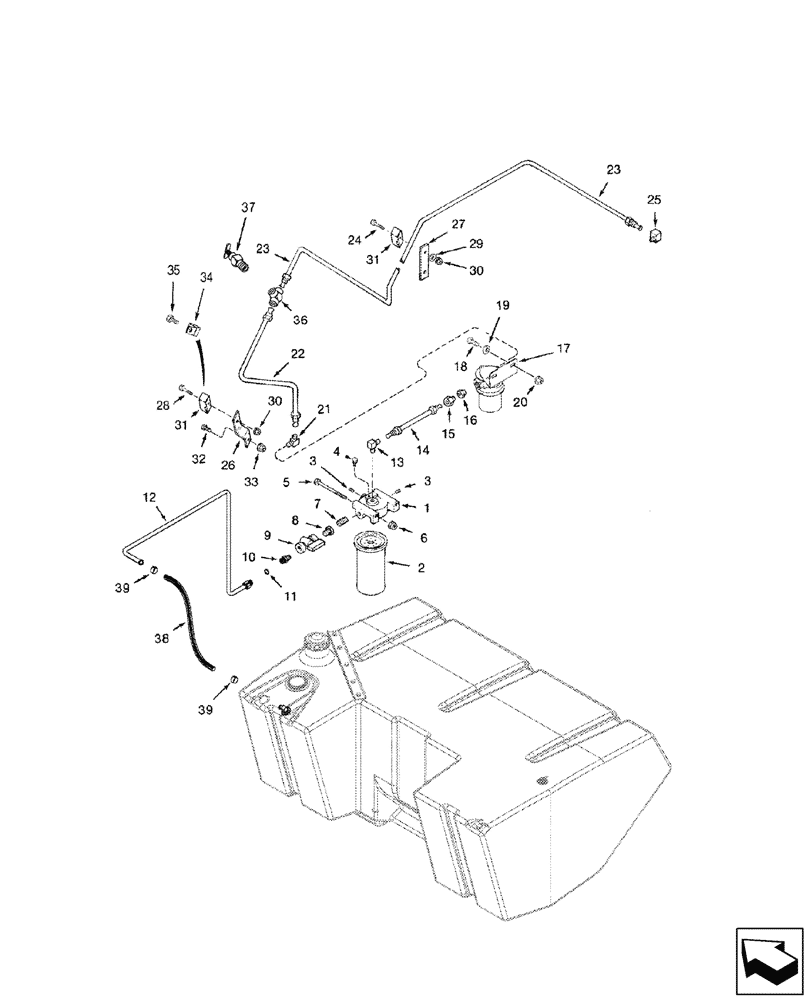

Схема запчастей Case IH 2577 - (10.214.07) - FUEL, SUPPLY (10) - ENGINE
11
21
7
19
31
24
13
36
22
15
14
33
17
5
23
34
18
27
9
34
25
35
39
8
2
28
30
38
10
3
4
12
39
26
32
3
23
1
29
31
30
6
16
20

Артикул

Название

Примечание

Количество

1

612277C2

FILTER HEAD

1шт.

2

87307432

FUEL FILTER

1шт.

3

217-86

PLUG,Hex Hd, 1/4"-18, Brass

2шт.

4

217-84

PLUG,Hex Hd, 1/8"-27, Brass

1шт.

5

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

7

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

1шт.

8

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

9

1345205C1

SHUT-OFF VALVE

1шт.

10

383519A1

FITTING

1/2" PT x 1/2" OR, Incl Ref 11

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

399754A1

FUEL TUBE

Fuel Supply

1шт.

13

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

14

384401A1

TUBE,0.375" OD, 138.8 mm Length

Filter To Pump

1шт.

15

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

1шт.

16

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.

17

87472310

FUEL PUMP

Lift, Single Wire

1шт.

17

87756609

FUEL PUMP,12V, 6A

Lift, Two Wire

1шт.

18

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

19

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

144535R1

ELBOW

3/8" INV FL

1шт.

22

1977001C1

HYD TUBE

Lower Supply

1шт.

23

86988949

FUEL TUBE,0.375" OD

Upper Supply

1шт.

24

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

25

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

26

1977005C1

SUPPORT

2шт.

27

1330564C1

PLATE

1шт.

28

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

Use with 236558A1

1шт.

29

495-81121

WASHER,.344" x 1 1/2" x .060"

2шт.

30

231-5344

FLANGE NUT,Flg, 1/4"-20

5шт.

31

236558A1

CLAMP

5шт.

32

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

34

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

36

408255A1

UNION

1шт.

37

86982771

VALVE

1/4" PT

1шт.

38

364782A1

FUEL HOSE

300 mm (11-13/16")

1шт.

39

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

5шт.

Выбрано товаров: 41
