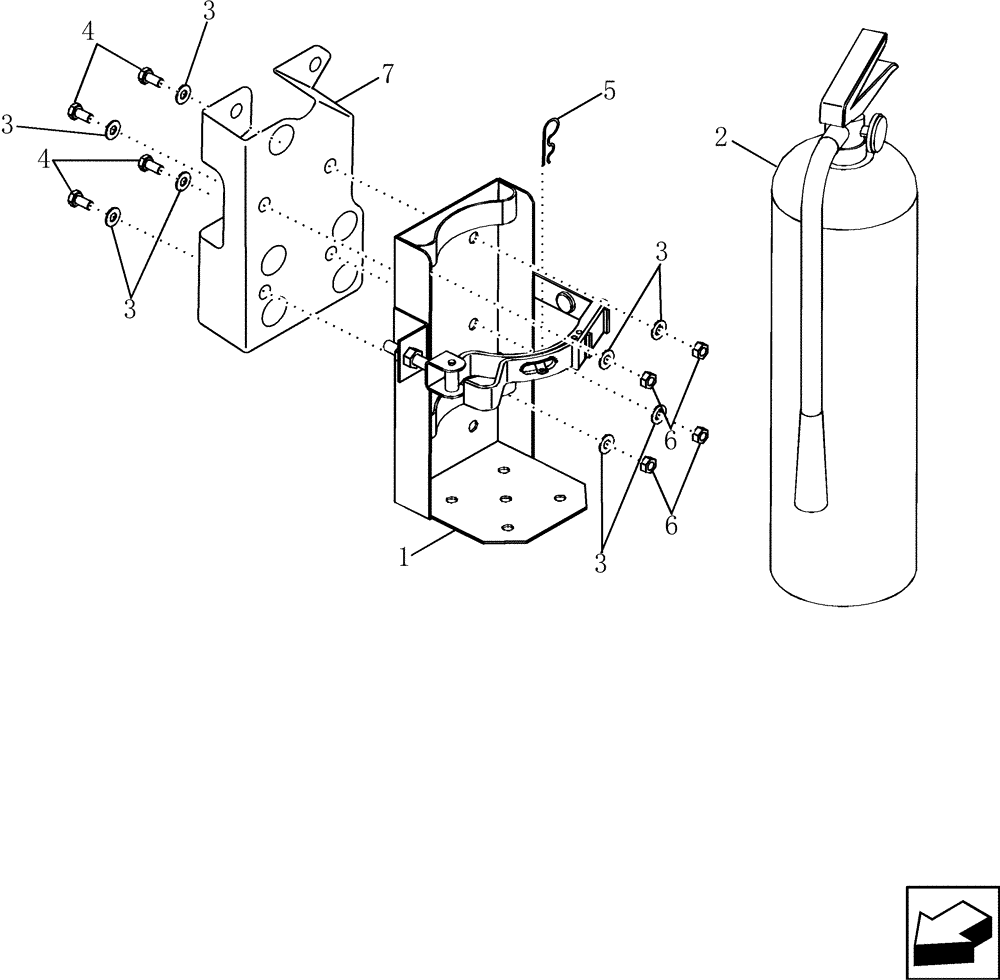

Запчасти Case IH 2577 (05.102.01) - FIRE EXTINGUISHER (05) - SERVICE & MAINTENANCE

1

87414154

BRACKET

Fire Extinguisher

2шт.

2

87414153

FIRE EXTINGUISHER

10 LB

2шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

8шт.

5

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

6

9706690

NUT,M8 x 1.25, Cl 8

8шт.

7

87640600

BRACKET

Ladder Fire Extinguisher Mount

1шт.

8

87282419

INSTRUCTION

Fire Extinguisher

1шт.
