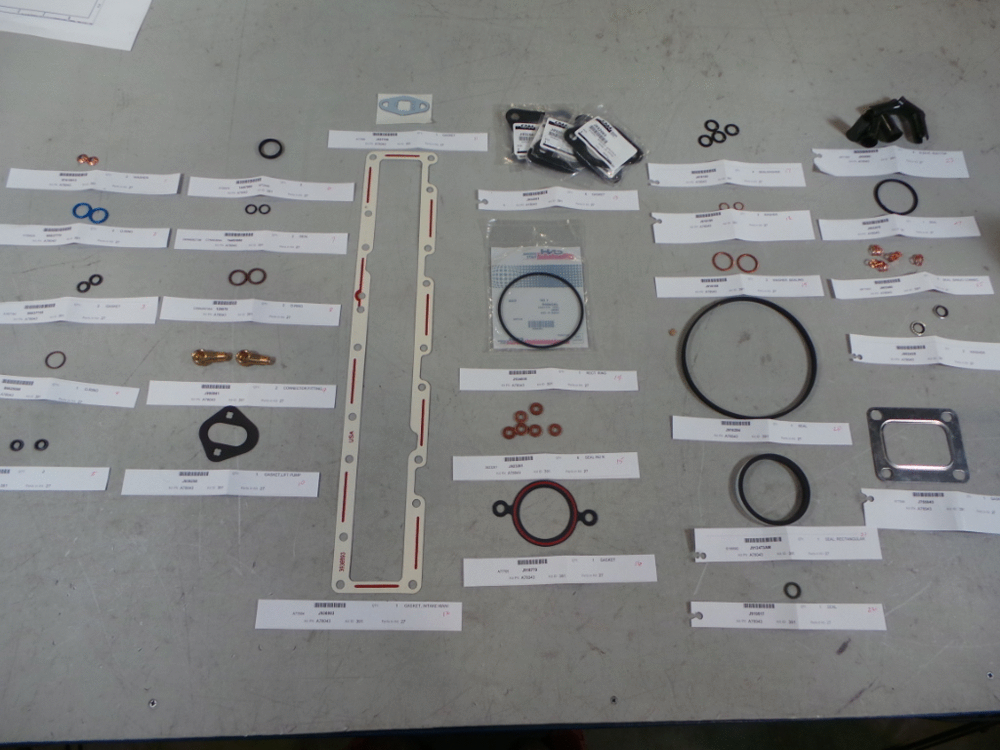

Запчасти Case IH 2577 (00.500.04) - KIT, GASKET - BASIC ENGINE SERVICE (00) - GENERAL & PICTORIAL INDEX

A78043

CYLINDER HEAD GASKET

Basic Engine, Incl Refs 1 - 27

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

3

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

4

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

5

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

6

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

7

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

8

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

22 mm ID

2шт.

9

J903380

SEAL

Banjo Connector

6шт.

10

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Rectangular

1шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

Injector

6шт.

12

J910517

O-RING

1шт.

13

J755843

GASKET,0.5mm Thk

Turbo Mount

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Rear Cover

1шт.

15

J936993

MANIFOLD GASKET,0.76mm Thk

Intake Manifold Cover

1шт.

16

J916284

O-RING

1шт.

17

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

Sealing

2шт.

18

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 mm ID

2шт.

19

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

M14

4шт.

20

J918779

GASKET,1.19mm Thk

Water Outlet

1шт.

21

J990881

CONNECTION

Banjo

2шт.

22

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

Injector Tip 2.5 mm

6шт.

23

J924605

SEAL

D-Shaped

1шт.

24

J939258

GASKET,1.21mm Thk

Lift Pump

1шт.

25

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

26

J932063

MANIFOLD GASKET,1.78mm Thk

Exhaust

6шт.

27

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm

2шт.
