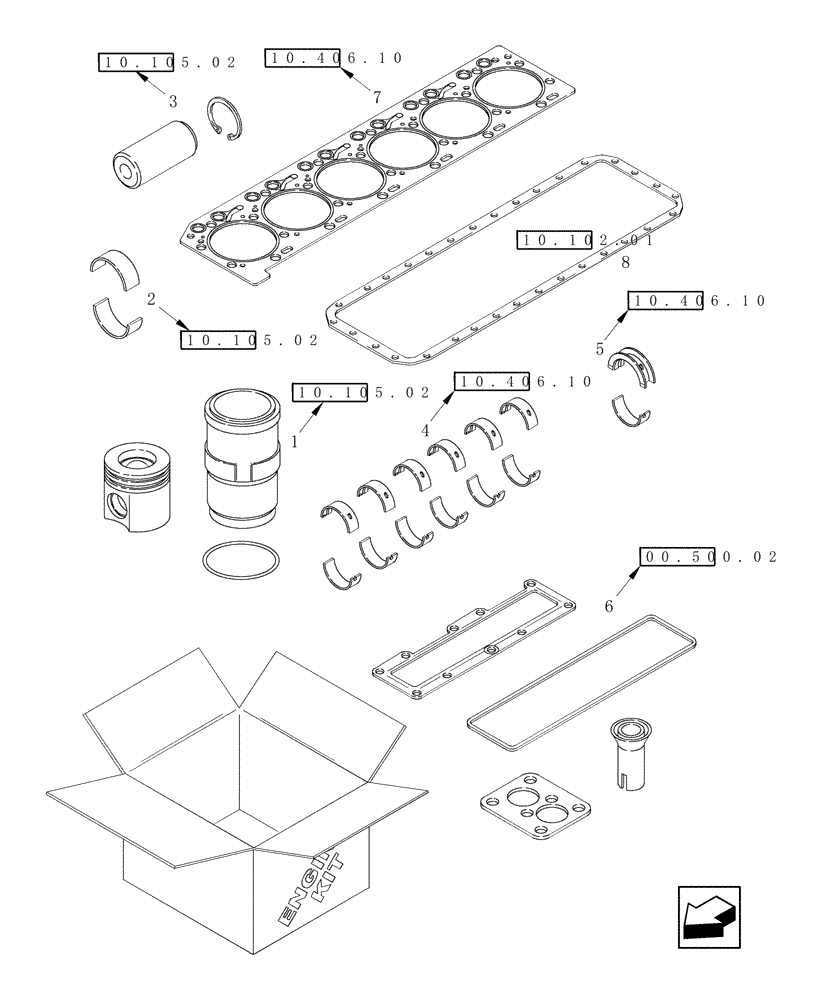

/ / / / / / / / (00.500.03) - KIT, ENGINE OVERHAUL
Запчасти Case IH 2577 (00.500.03) - KIT, ENGINE OVERHAUL (00) - GENERAL & PICTORIAL INDEX
3
1
10.406.10
10.102.01
10.406.10
8
00.500.02
10.105.02
10.105.02
10.105.02
10.406.10
7
2
4
6
5
87348859
ENGINE OVERHAUL KIT
Incl Refs 1 - 8
1шт.
1
87343262
KIT
6шт.
2
87443389
BEARING LINER
Connecting Rod, Standard
6шт.
3
87342670
PISTON PIN
6шт.
4
J945930
BEARING SET
Main, Standard
6шт.
5
J945929
THRUST BEARING
Thrust, Standard
1шт.
6
87348974
GASKET KIT
Valve Grind
1шт.
7
87737237
CYLINDER HEAD GASKET,1.81mm Thk
1шт.
8
87308050
GASKET,0.95mm Thk
Oil Pan
1шт.
