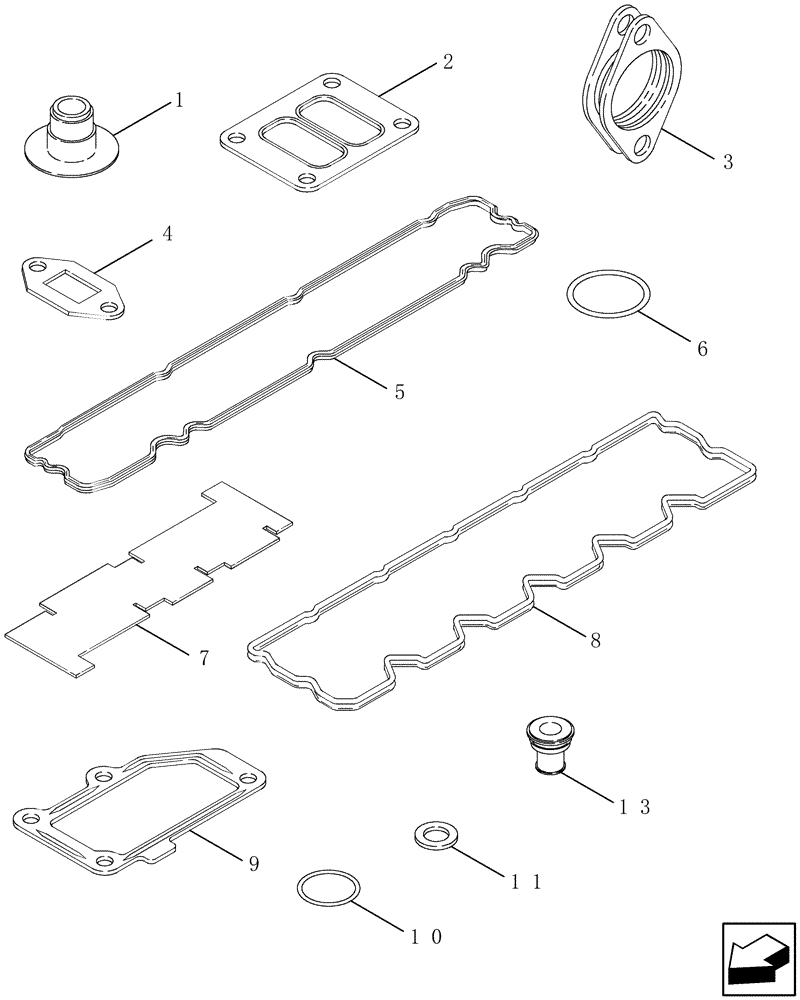

Запчасти Case IH 2577 (00.500.02) - GASKET KIT - VALVE GRIND (00) - GENERAL & PICTORIAL INDEX

87348974

GASKET KIT

Valve Grind, Incl Refs 1 - 13

1шт.

1

J943888

SEAL

Valve Stem - Blue

12шт.

1

87352235

SEAL

Valve Stem

12шт.

2

J901356

GASKET,0.5mm Thk

Turbocharger

1шт.

3

J937479

MANIFOLD GASKET

Exhaust

6шт.

4

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

5

87345861

GASKET,3.2mm Thk

Valve Cover

1шт.

6

87348322

SEAL,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

6шт.

7

87404692

GAUGE

Cylinder Head

1шт.

8

87344755

GASKET

Rocker Lever Housing

1шт.

9

87335272

GASKET

2шт.

10

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

11

313262A1

O-RING,0.07" Thk x 0.364" ID

1шт.

13

87342136

ISOLATOR

8шт.
