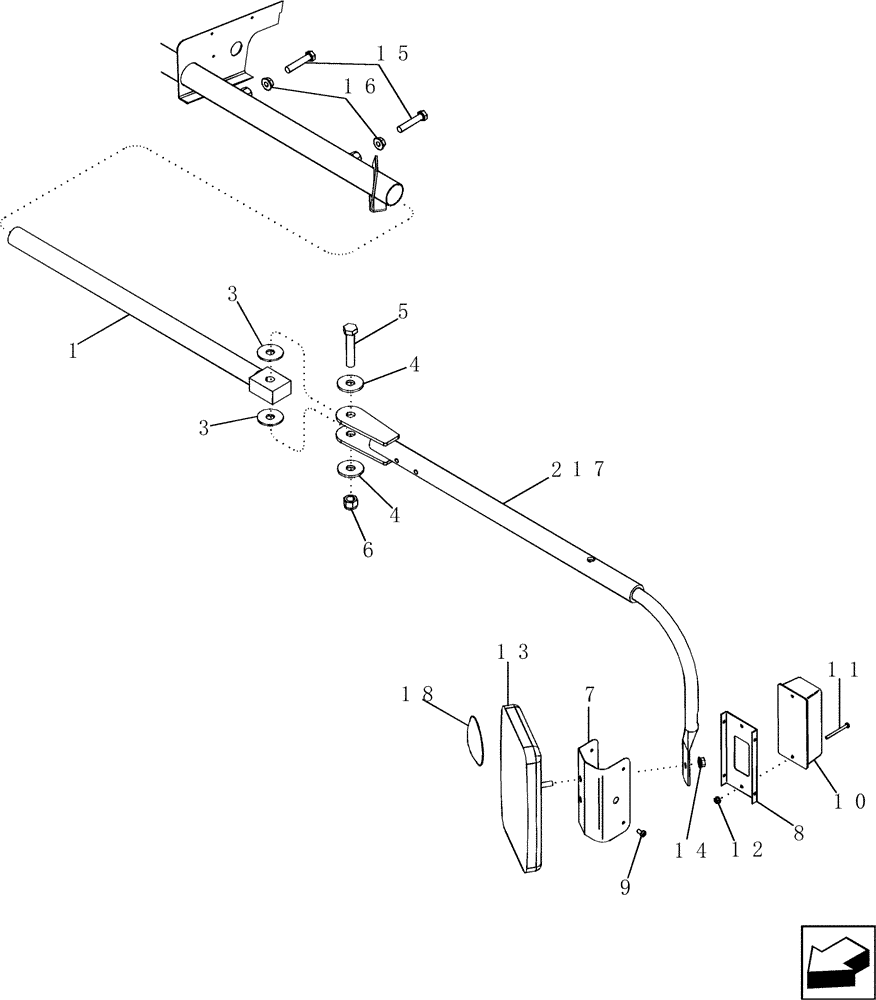

Запчасти Case IH 2577 (90.118.01[02]) - CAB - MIRROR, REAR VIEW WITH WARNING LAMP - ASN HAJ302029 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87617888

SUPPORT ASSY.

Inner Mirror, Bar Weldment

2шт.

2

87617949

SUPPORT ASSY.

Outer Mirror, LH

1шт.

3

87646316

FRICTION WASHER

Mirror Pivot Friction

4шт.

4

495-81030

WASHER,21/32" x 2" x .179"

4шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

6

412066

NUT,M16 x 2.0, Cl 8

2шт.

7

291911A1

SUPPORT

Flasher Light

2шт.

8

127960A1

SUPPORT

Flasher Light

2шт.

9

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

8шт.

10

107324C91

LAMP BASE

Warning

2шт.

11

1974614C2

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 2 1/4"

4шт.

12

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

13

1283403C1

MIRROR

2шт.

14

122379A1

FLANGE NUT

2шт.

15

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

4шт.

16

825-51412

FLANGE NUT,M12, Flg Ser

4шт.

17

87617911

SUPPORT ASSY.

Outer Mirror Weldment, RH

1шт.

18

87564375

MIRROR

1шт.
