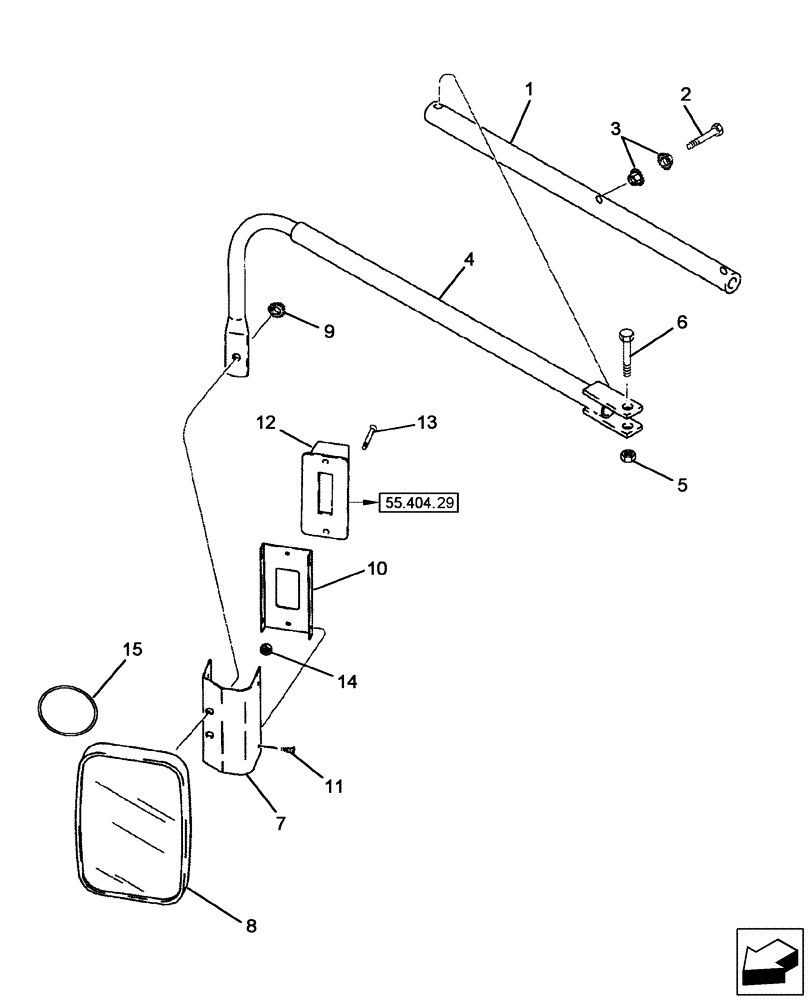

Запчасти Case IH 2577 (90.118.01[01]) - CAB - MIRROR, REAR VIEW WITH WARNING LAMP - BSN HAJ302029 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

178325A2

SUPPORT TUBE,12.5 mm ID, 38.1 mm OD

2шт.

2

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

4шт.

3

825-51412

FLANGE NUT,M12, Flg Ser

4шт.

4

87314046

SUPPORT

RH (Not Shown)

1шт.

4

87314047

SUPPORT

LH

1шт.

5

825-1412

NUT,M12, Cl 8

2шт.

6

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

7

291911A1

SUPPORT

2шт.

8

1283403C1

MIRROR

2шт.

9

122379A1

FLANGE NUT

3/8"

2шт.

10

127960A1

SUPPORT

2шт.

11

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

8шт.

12

107324C91

LAMP BASE

2шт.

13

1974614C2

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 2 1/4"

4шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

15

87564375

MIRROR

Self Adhesive, RH Only

1шт.
